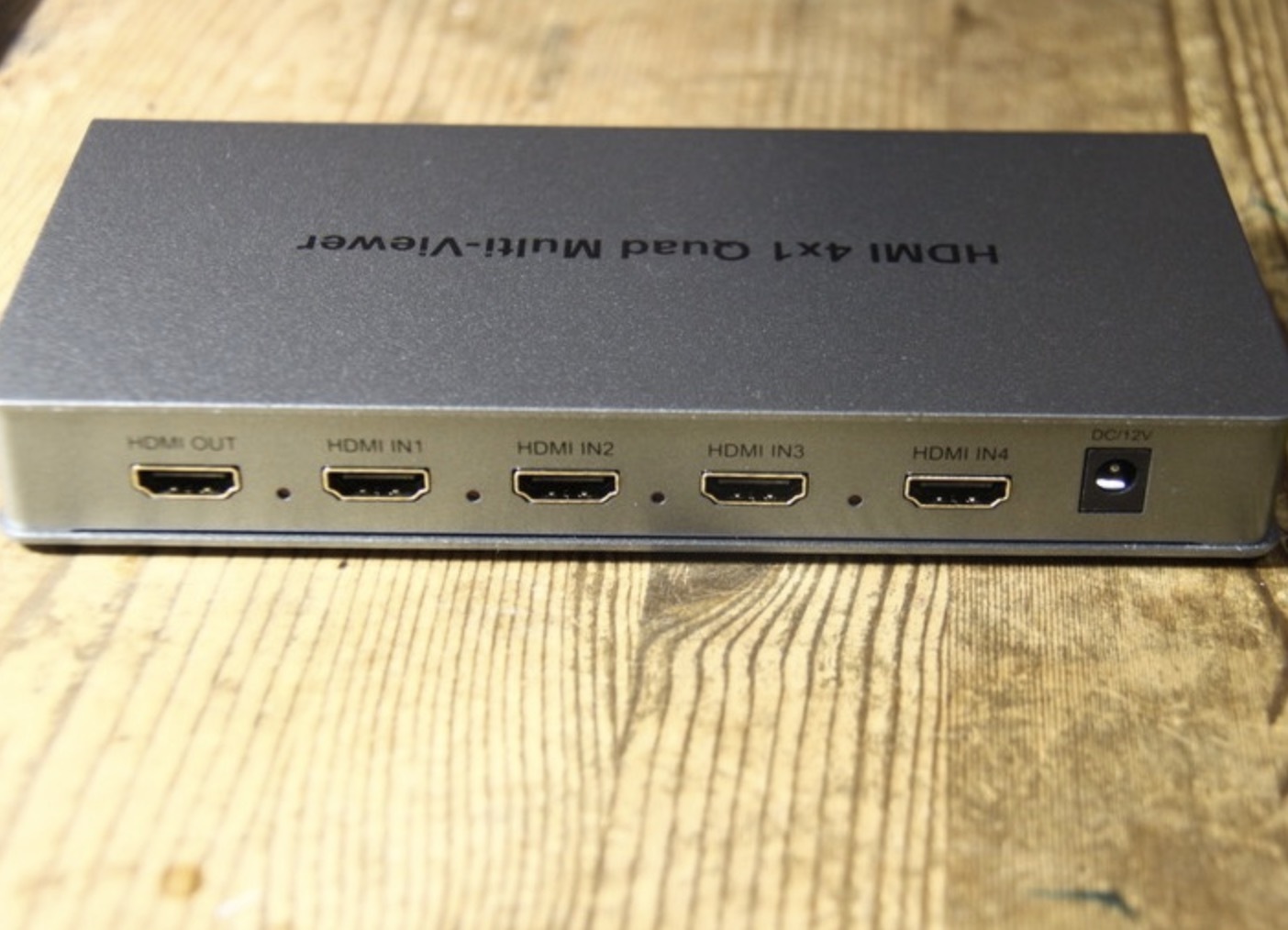

FEBON 4 CH simple video switcher

4CH  hdmi input  simple video switcher

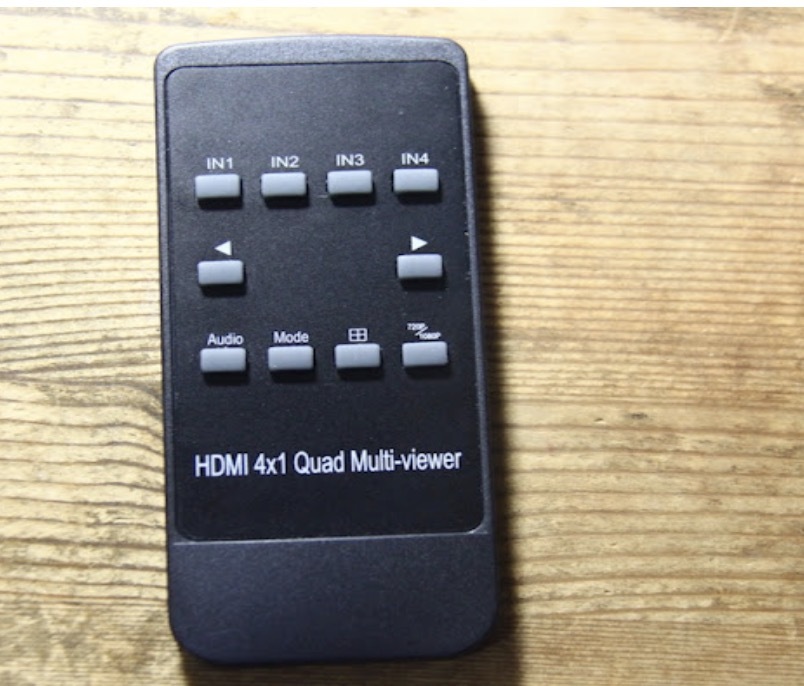

you can use the remote control to select which channel you want.

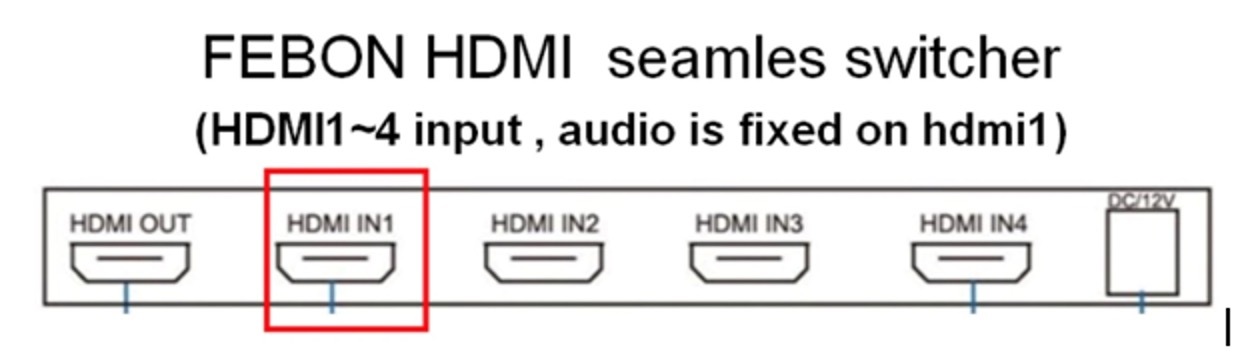

The audio is always fixed on HDMI 1

1. all of the hdmi inptur soruce must be the same resolution.

    eg:  all of hdmi source are 1920x1080p / 1920x1080i
           all of hdmi source are 1280x720p
     if the input resolution is not the same resolution ,  the switch is not smooth.

 2. we do not recommend that the hdmi souruce is 1920X1080i.
    it will have the jaggy video

3. This machine is just video switcher only !!

Shipping package:

1.  FEBON 4 CH video switcher

2.  remote control

How to Use?
STEP1: Plug the power into the video switcher box  (Power first)
STEP2: plug the 4 channel hdmi video source into box
STEP3: plug the hdmi output of switcher box into TV or capture card
 (step1 and step2 can not change)


How to fix the video ?
If you see the video is error, please press the remote control “田”

Application1:

Multi channel HDMI mixer switcher with iOS stream Live

APPLICATION 2:  Live streaming on OBS
