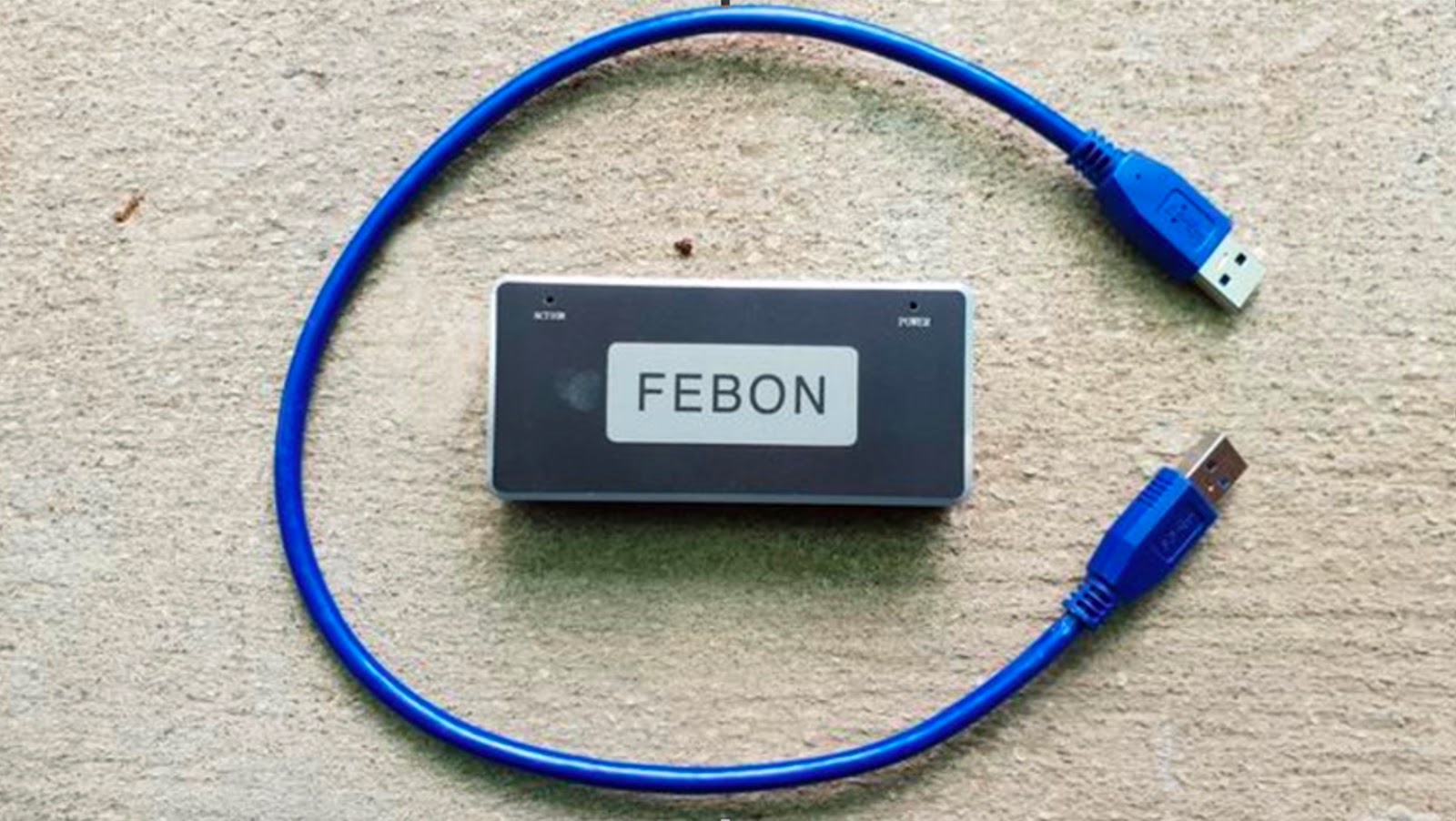

USB3.0 FEBON169 HDMI capture card

HDMI to UVC !!!!
Driver free for MAC and windows
compatible for broadcasting /video conference software
(OBS Wirecast twitch ustream VMIX skype ....)

multi hdmi grabber card as video switcher

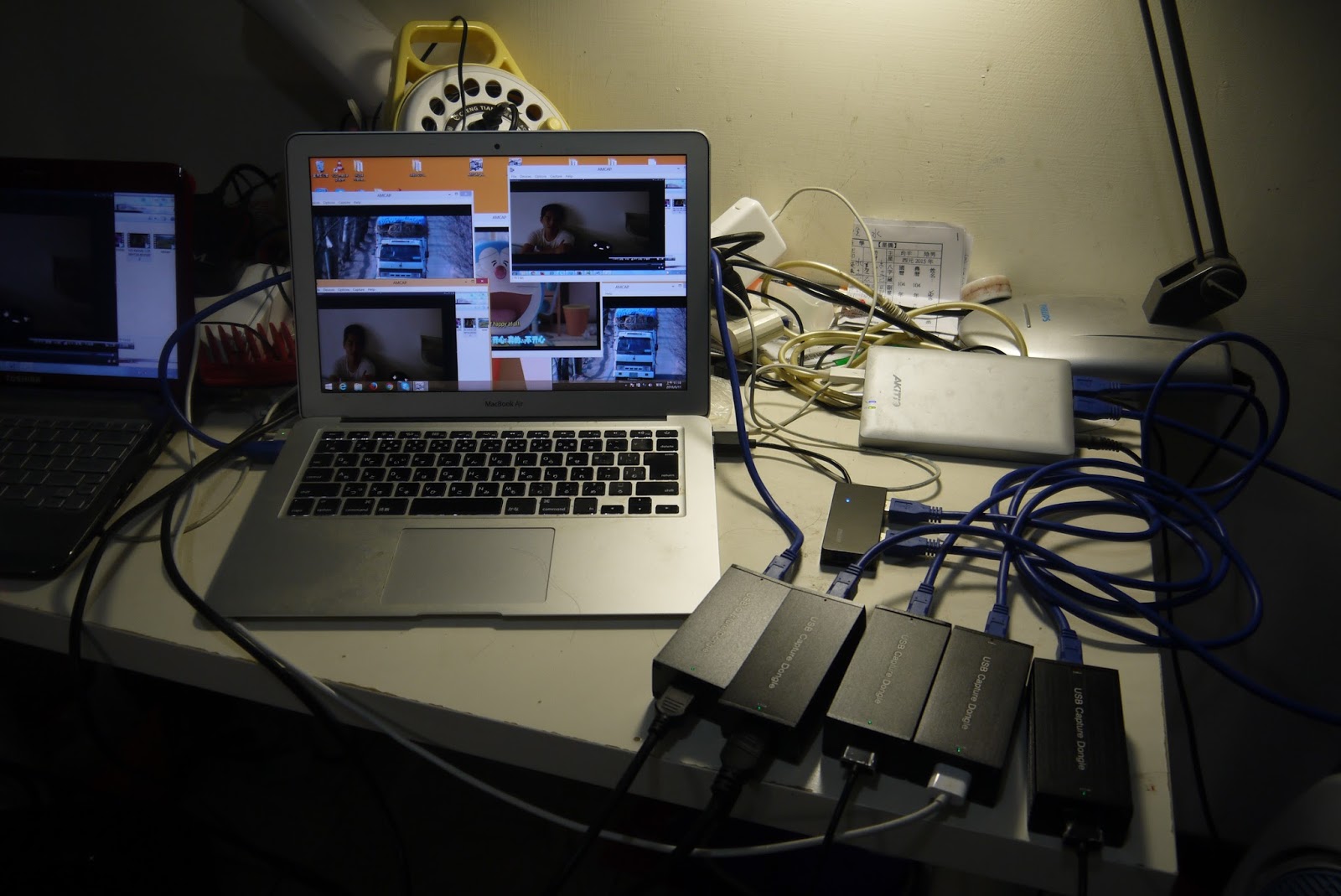

At the same time, I can connect 5 ea FEBON169 UVC HDMI capture card (bulk mode) with PC for OBS live streaming use. FEBON169 uvc hdmi capture card is BULK mode!without professional seamless video switcher, you can use multi capture card on a computer for OBS studio use

Work on android

How to check if your USB3.0 hdmi capture is real uvc USB3.0 mode with android application?

to check YUV format!

if capture card can output YUV and display high frame rate, it means your HDMI capture card can support USB3.0 mode with android

some app can let it work on USB3.0 mode

Before you want to do livestreaming with android phone+ FEBON180 capturecard,
please see the notice as below

For android live streaming application, you need take the risk

Not all of android phone can let uvc device work.

if not work, you can change another android phone

1. USB3.0 UVC hdmi capture card is just output 1280x720p 20fps for android application
(android cpu is not quick)

Usually , Android just can output 1280x720p 20fps.

2.1 It can not work on android 10 OS version

2. 2 Not all of android phone can let uvc hdmi grabber card work

if the CPU is Mediatek SOC " MTXXXXX", grabber card can not work on this grabber card

android compatible list
https://febon.blogspot.com/2017/02/compatible-list-of-uvc-device-working.html

3. The livestreaming from android is not better than from PC

4.at the same time, it can not charge and livestreaming with grabber card

4.1 Android phone is Micro USB

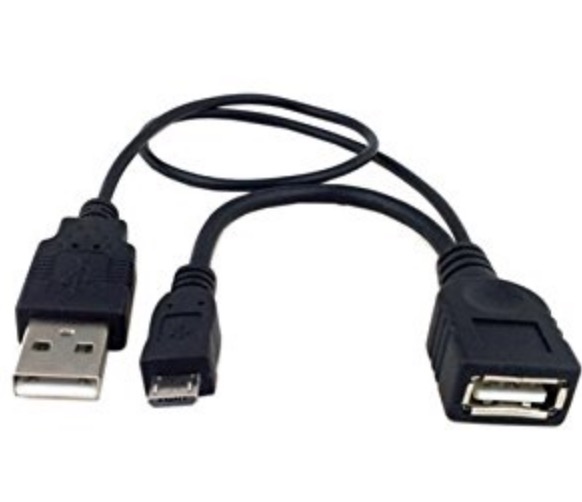

you can use Y OTG line.
it just extend the using time and just provide the power for grabber card

it is not charge for phone

4.2. Android phone is type C

at the same time, it can charge for phone and provide power for grabber card

(The picture is from camerafi company)

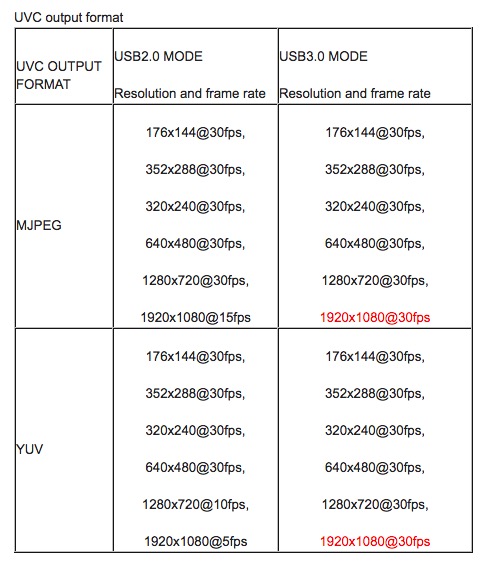

HDMI to UVC up to 1920x1080p
Comparable USB3.0 /USB2.0

UP to 1920X1080P 30fps @YUV (USB3.0)

compatible list

USB3.0 MODE: up to 1920x1080p 60fps yuv/mjpg

WINDOW8.1 /WINDOWS10 /ubuntu. + USB3.0 XHCI

MAC OSX + USB3.0 XHCI

USB2.0 mode:

it can compatible for any situation

HDMI INPUT

1920x1080p 60/50/30/24p1920x1080i 60/50fieled1280x720p 60/50p720x480 60p720x576 50p

UVC BUlk mode
Why Bulk mode???
at the same time, servral febon169 can work on pc !!

Video latency is just 0.04sec -0.16sec (Windows)

UVC Output : 1920x1080pThe latency of YUV :0.08-0.12 secThe latency of mjpg: 0.12-0.16 sec	UVC output 1280x720p The latency of YUV: 0.04-0.08sec The latency of mjpg 0.07-0.12sec

Video latency in Android.
UVC Output 640x480 mjpg : 0.12sec –0.16 sec
UVC output 1280x720p mjpg : 0.16sec –0.2 sce
UVC ouptu 1920x1080p mjpg ; 0.28sec –0.36sec
