USB3.0 FEBON180 UVC HDMI capture card

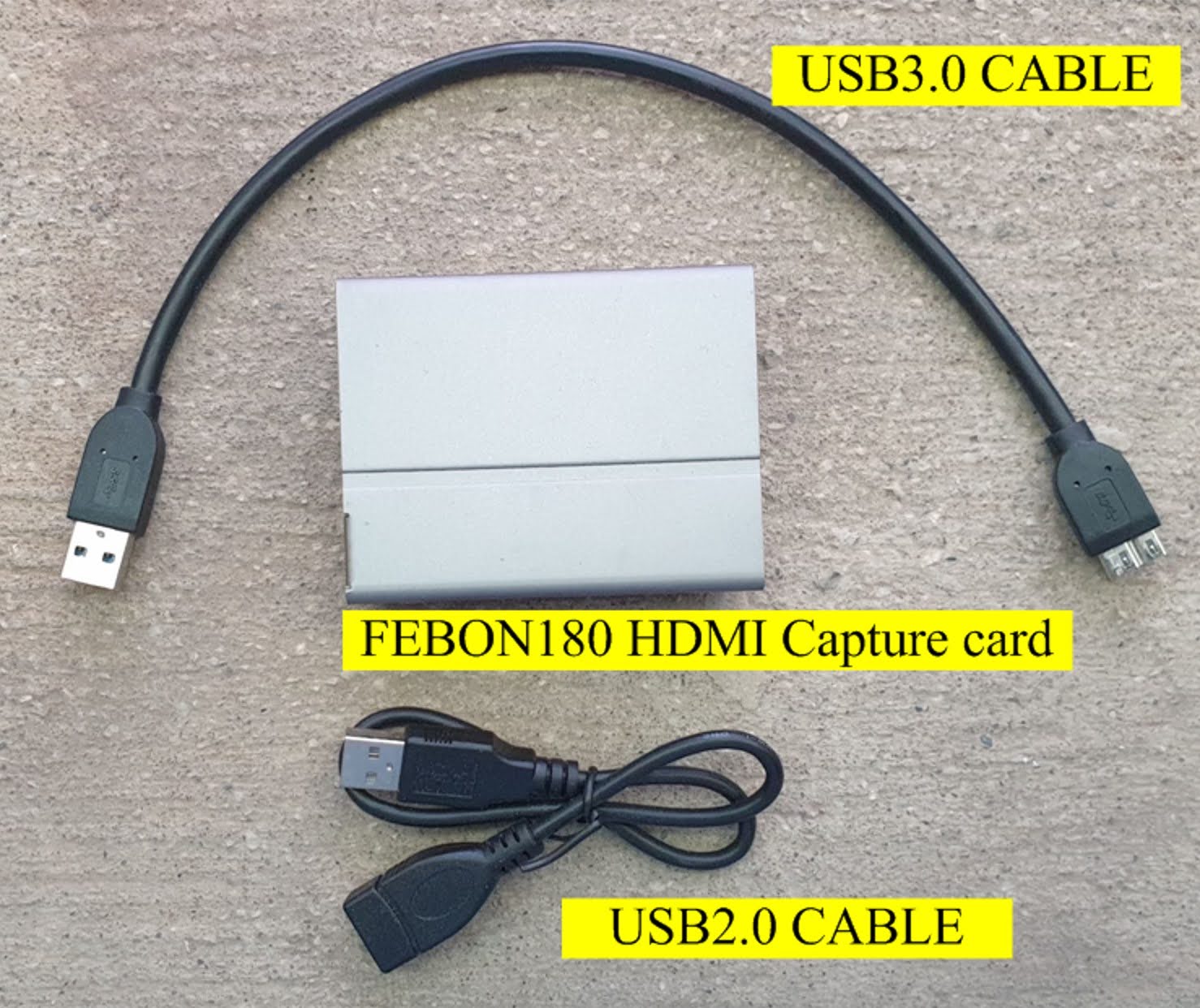

Shipping package Package

1. FEBON180
2. USB3.0 cable
3. USB2.0 cable

How to connect with Your PC?

It is better that you add a USB3.0 HUB with your PC. It will be more stable

How to use USB3.0 FEBON180 UVC HDMI GRABBER CARD (metal case)

summary:

1.how to judge your camcorder DSLR camera can be as video and audio source for live streaming use (clean hdmi or not)

2. How to know the USB3.0 compatible issue

3. the basic OBS STUDIO setting facebook live and Youtube Live

4. advance OBS techninal setting (GIF PNG PIP video ...)

DATASHEET
English datasheet link

d

AUDIO auto detect sampling rate

It can automatically detect the input audio formats and swift it to 48KHz PCM audio.
-

-
-

Follow standard UVC MJPG/YUV for USB3.0 and USB2.0

USB3.0 MODE: up to 1920x1080p 60fps yuv/mjpg

WINDOW8.1 /WINDOWS10 /ubuntu. + USB3.0 XHCI

MAC OSX any version + USB3.0 XHCI (new firmware after 2017/10/30)

USB2.0 mode:

it can compatible for any situation

USB3.0 high speed mode is up to 1920x1080p 60fps YUV /mjpg

USB2.0 normal mode (Android application) is up to 1920x1080p 30fps mjpg

OBS Livestreeaming with facebook live

OBS setting: you can use this softwarebwith facebook /youtube live
When cpu using rate less than 30%, the ysnc of audio and video will be perfect
We will try to reduce the cpu using rate.
Please DO NOT let your PC CPU using rate > 30%

Windows OBS	MAC OBS

Work on Android phone

For Type C android application, you need add USB2.0 cable

it will drop into USB2.0 Mode

Most of android phone is just USB2.0 mode.

It will have good video frame rate for android application.
(Not all of android phone can let uvc device work. it have compatible problem)

DV camcorder livestreaming with android phone to facebook Live

recorded on android	Livestreaming on Android

Before you want to do livestreaming with android phone+ FEBON180 capturecard,
please see the notice as below

For android live streaming application, you need take the risk

Not all of android phone can let uvc device work.

if not work, you can change another android phone

1. USB3.0 UVC hdmi capture card is just output 1280x720p 20fps for android application
(android cpu is not quick)

Usually , Android just can output 1280x720p 20fps.

2.1 It can not work on android 10 OS version

2. 2 Not all of android phone can let uvc hdmi grabber card work

if the CPU is Mediatek SOC " MTXXXXX", grabber card can not work on this grabber card

android compatible list
https://febon.blogspot.com/2017/02/compatible-list-of-uvc-device-working.html

3. The livestreaming from android is not better than from PC

4.at the same time, it can not charge and livestreaming with grabber card

4.1 Android phone is Micro USB

At the same time, it can not use and charge together

4.2. Android phone is type C

at the same time, it can charge for phone and provide power for grabber card

NOT all of USB-C android phone can use and charge at the same time!!

some USB-C android phone can charge and use at the same time

some USB-C android phone CAN NOT charge and use at the same time

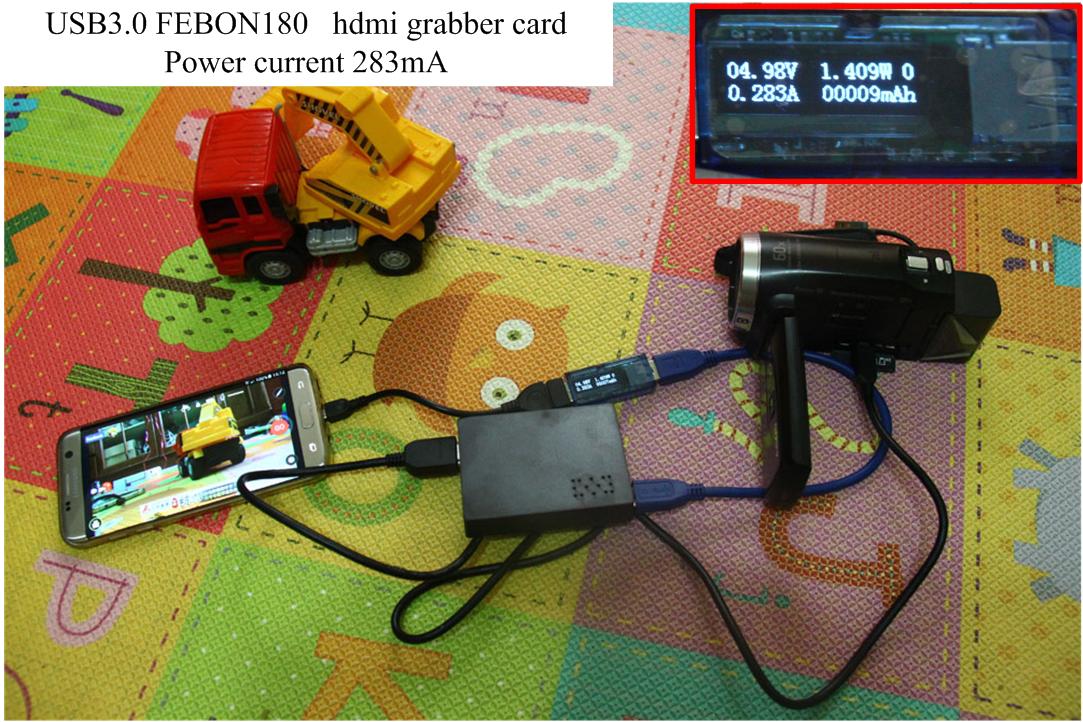

The power consumption test

averge power is. 283mA
