old hardware version USB2.0 FEBON264 UVC CVBS capture card
Target for airplane drone!
The wirelesss CVBS is weak and not stable.
US$79.7
Availability: In Stock
Target for airplane drone!
The wirelesss CVBS is weak and not stable.
FEBON264 UVC CVBS capture card
Product spec

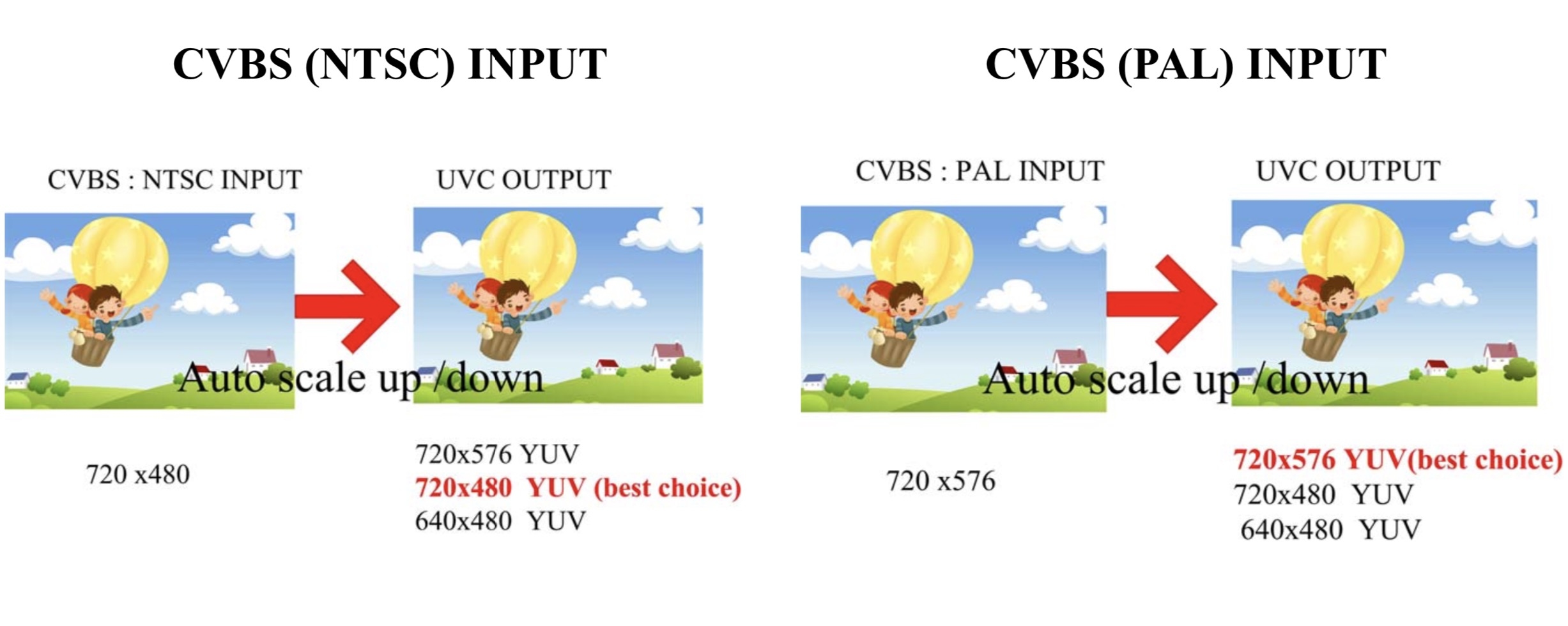

1.CVBS (NTSC or PAL ) INPUT, AUTO detect
2.Play & Plug with USB Video Class
Product spec
1.CVBS (NTSC or PAL ) INPUT, AUTO detect
2.Play & Plug with USB Video Class
2.1 UVC 1.1 version
2.2 USB2.0 bandwith
2.3. video format is YUV ONLY ( NO MJPG & No H.264 )
3.Output resolution is up to 720x480 30fps YUV & 720x576 25fps YUV
(For NTSC input, select 720x480 30fps is best ; For PAL input, select 720x576 25fps is best)
4.Driver free (USB Video Class) UVC for any OS (windows XP、Vista、win7, win8, MAC OS)
5. Works on LINUX /Android if UVC driver has been developed in your embedded OS
6.Compatible for windows Directshow.
(For NTSC input, select 720x480 30fps is best ; For PAL input, select 720x576 25fps is best)
4.Driver free (USB Video Class) UVC for any OS (windows XP、Vista、win7, win8, MAC OS)
5. Works on LINUX /Android if UVC driver has been developed in your embedded OS
6.Compatible for windows Directshow.
7. Video latency: 0.15-0.2sec
8. video enhancement : de-interlacer & 3D comb filter
CVBS (Composite) to UVC !!!!
Driver free for MAC and windows
compatible for broadcasting /video conference software
(OBS Wirecast twitch ustream VMIX skype ....)
Driver free for MAC and windows
compatible for broadcasting /video conference software
(OBS Wirecast twitch ustream VMIX skype ....)
Video enhancement process
de-interlace and 3D Comb filter
| de-interlace and 3D Comb filter test forFEBON264 UVC H.264 CVBS grabber card | de-interlace and 3D Comb filter test forcomparison table of AVerMedia AVerCapture M C039M and FEBON100 UVC CVBS grabber card and h.264 CVBS grabber card |
DV camcorder livestreaming with android phone to facebook live
(Not all of android phone can let it work!)
Android compatible list link
(Not all of android phone can let it work!)
Android compatible list link
Work on Raspberry pi
| Raspberry pi 3 model b | Raspberry pi 2 model b |
Reference link
1. USB2.0 FEBON264 UVC CVBS capture card user manual
2. Use FACEBOOK Live on Android Phone to Livestream Camcorder
3. UVC grabber card work on Raspberry pi
4. UVC grabber card display on Android
5. Streaming DV camcorder camera with Youtube live
