HDMI Splitter for atem mini (pro) HDMI output use (HDMI 1 in 2 Out )

main function

main chip: Main chip IS NOT macrosilicon MS9333X IC

1. ATEM mini pro HDMI Channel 1 trobuleshooting

2. ATEM MINI (PRO) series be compatible for Samsung 4K TV.

3. Nintendo switch connect to Smsung 4K TV

   (My test samsung tv is UA50BU8000WXZW . Not guaranteed to work on all Samsung TVs）

Do not compatible for  macrosilicon MS9333 MS9332 MS933X  splitter ic

eg: China cheap hdmi splitter with FEBON hdmi splitter together

eg: China cheap hdmi capture that with HDMI LOOP-OUT

   (Loop OUT means embedded macrosilicon MS9333x IC)

APLICATION 1:  ATEM MINI PRO hdmi input channel 1 troubleshootoing

APPLICATION 2:  ATEM MINI (Pro) display on samsung 4k TV

This HDMI splitter 1 in 2 Out  is compaitible for atem mini (pro) HDMI OUTPUT

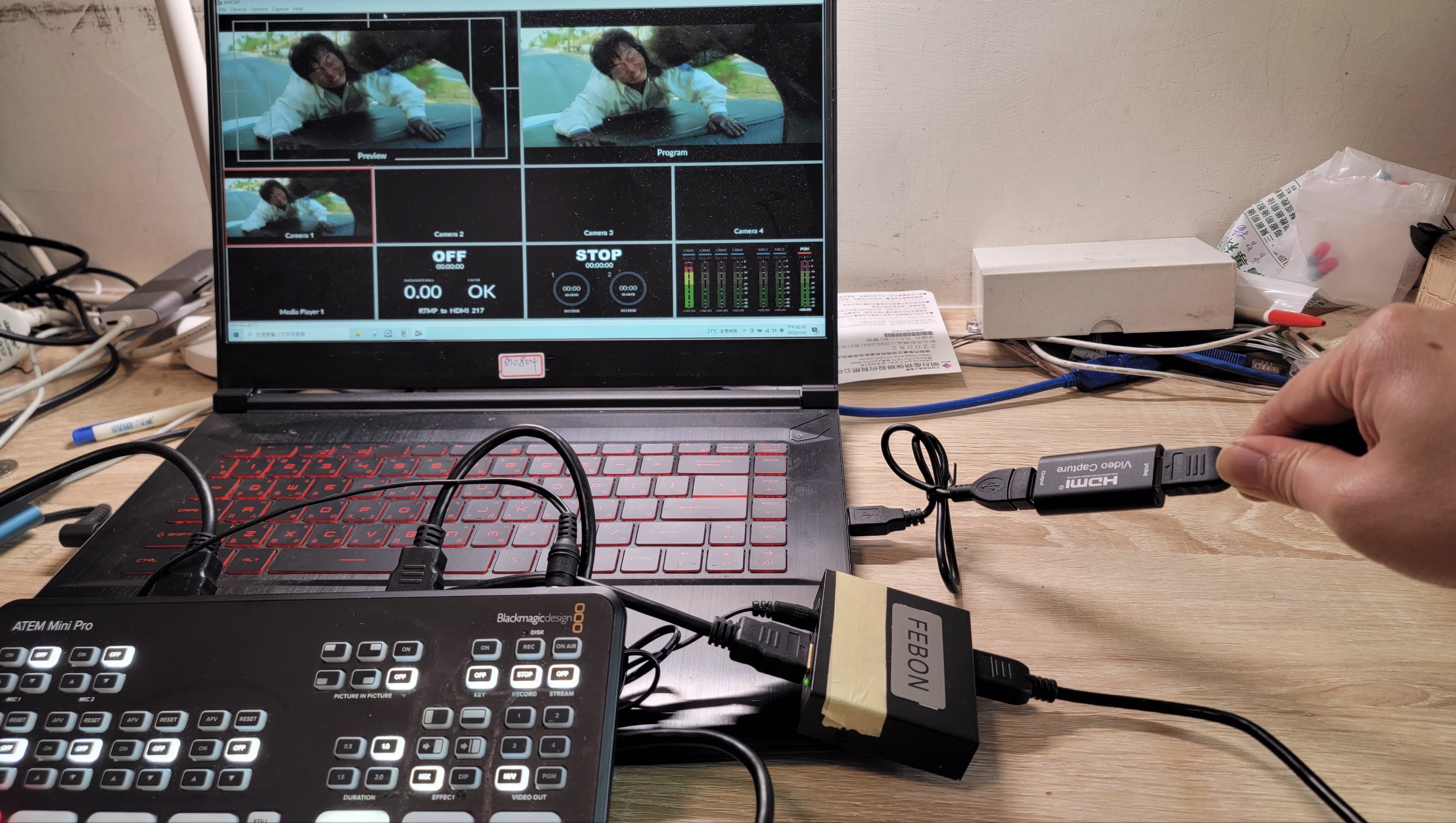

connec to ATEM mini (PRO) HDMI output

APPLICATION 3:  connect to China Cheap hdmi capture card

note!!  this capture card DO NOT have HDMI loop function

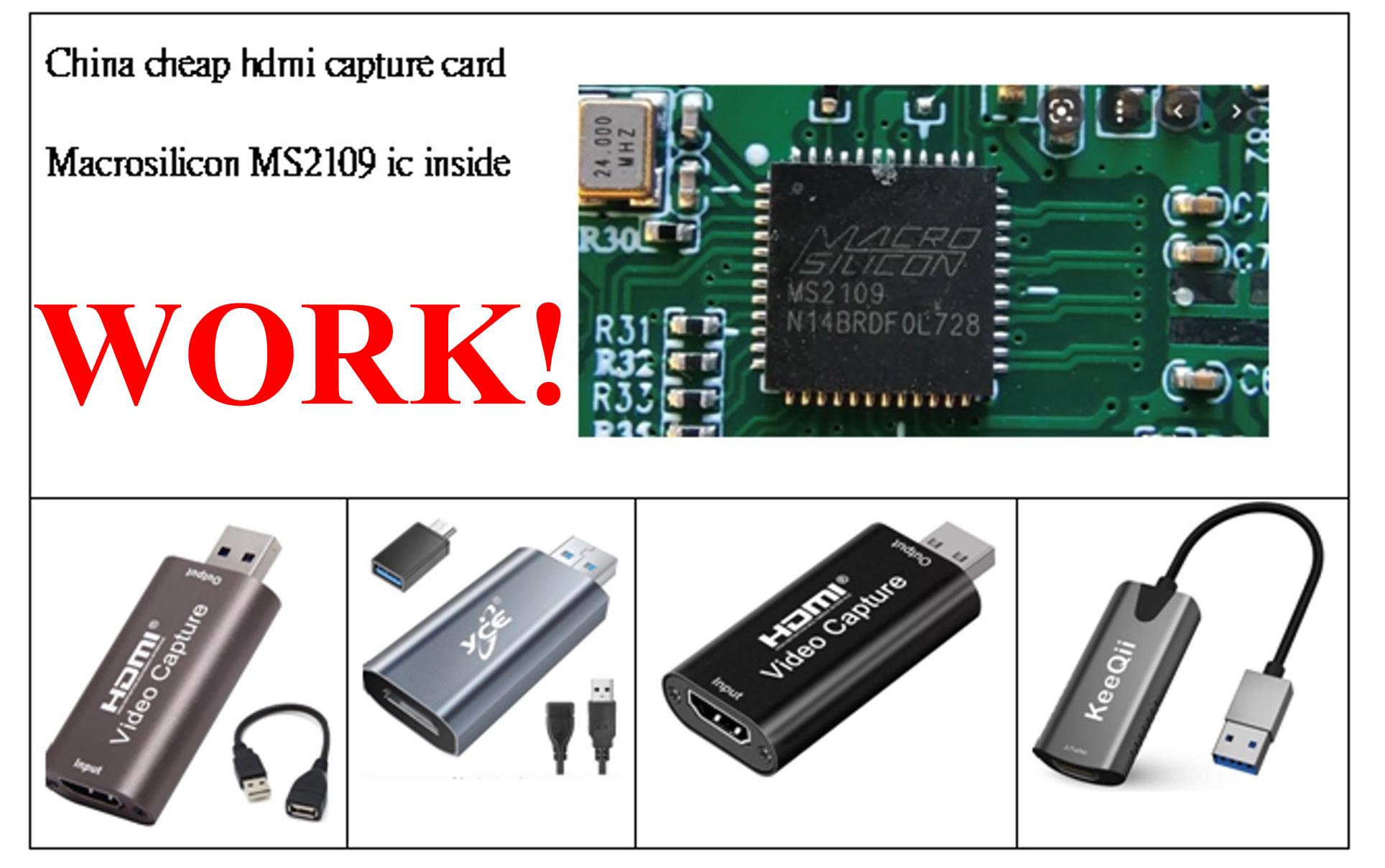

Cheap China hdmi capture card is MS2019 ic inside ( made by macrosilicon )

APPLICATION 4:  Nintedo switch connect to samsung 4k TV

 (My test samsung tv is UA50BU8000WXZW . Not guaranteed to work on all Samsung TVs）

 (My test samsung tv is UA50BU8000WXZW . Not guaranteed to work on all Samsung TVs）
