ultra small uvc to HDMI ! uvc to CSI-2 mipi solution

This uvc to hdmi module  board is mainly to be combined with hdmi to mipi.

In this way, the use of uvc to mipi can be completed

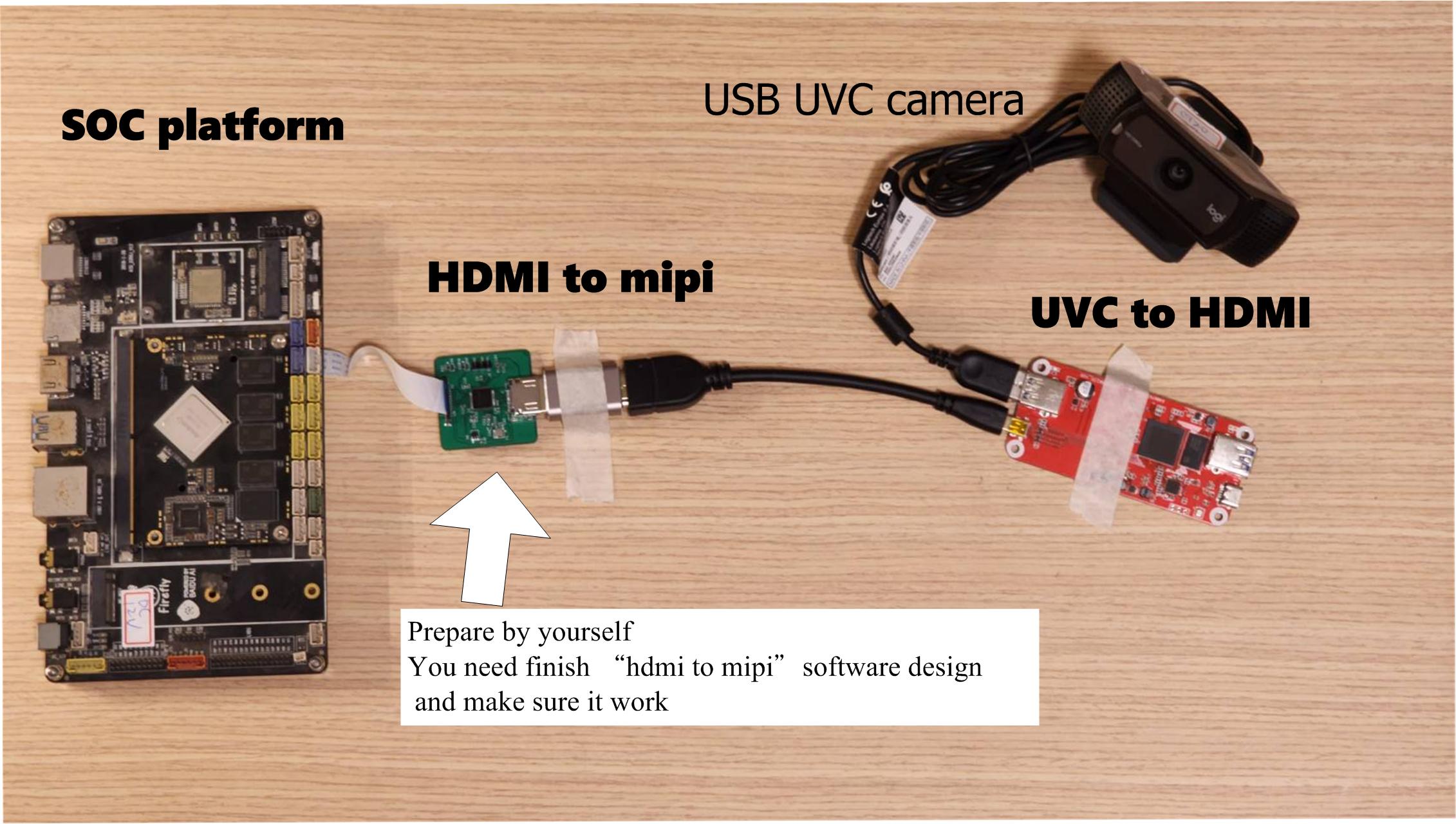

hdmi to csi-2 MIPI =  ultra small uvc to HDMI + HDMI to csi-2 mipi

UVC to MIPI can be used in SOC development version.

Such as RASPBERRY PI, NVIDIA Jetson Orin NX and  ANDROID development platform

Before use, please confirm whether you have completed the hdmi to mipi solution.

When you complete the hdmi to mipi project,

you can add this uvc to hdmi, which can become uvc to hdmi

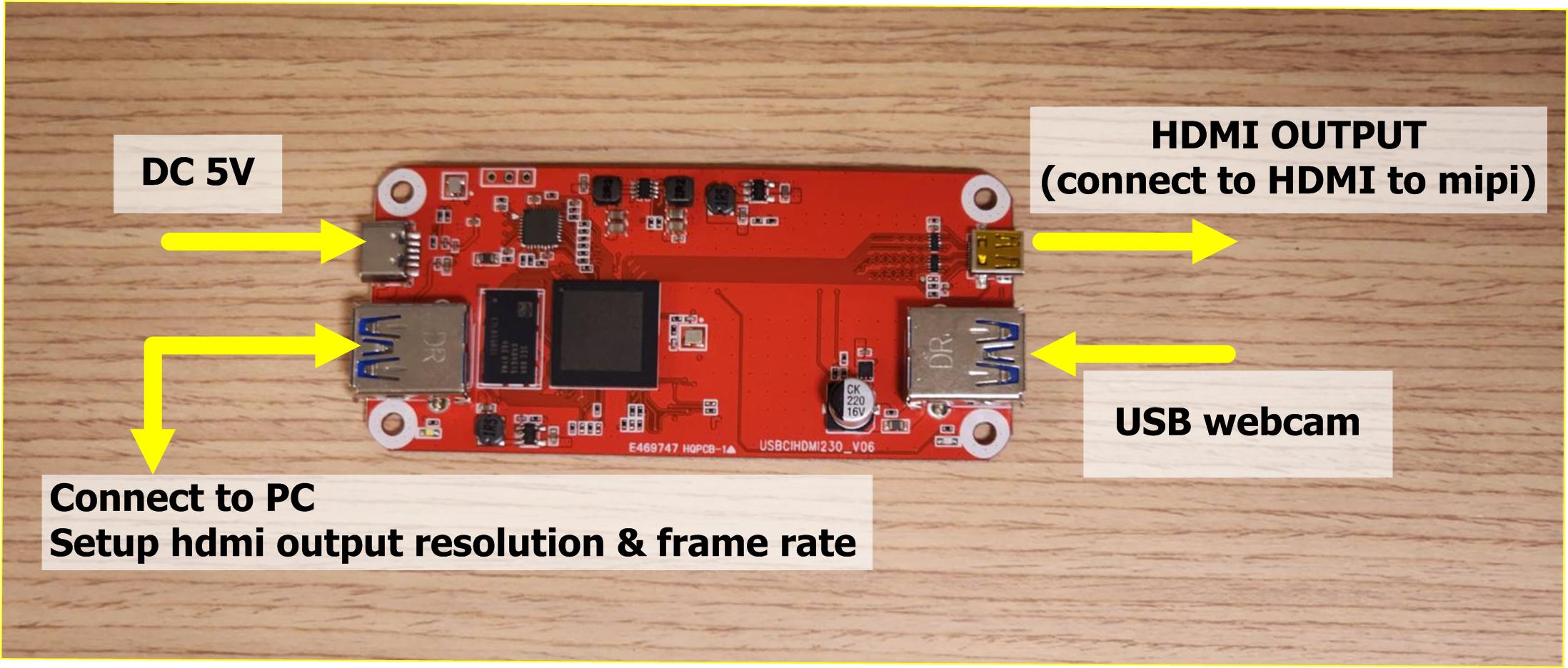

ultra small uvc to hdmi board:

Ultra small UVC to HDMI adapter.

TURN any USB2.0 UVC webcam into HDMI OUTPUT.  HDMI output is fixed.

eg:

when you connect Logitech c922 camera, the hdmi outuput is fixed with 1920x1080p 30fps.

when you connect 640x480 USB2.0 usb camrea, the hdmi is fixed with 1920x1080p 30fps.

Shipping package

1. ultra small uvc to hdmi adapter

2. DC 5V power adapter

3. USB-C Power cable

4. micro hdmi cable

5.  USB-A cable

you also can modify or setup your hdmi output resolution

use PC broswer http://172.20.13.168

the hdmi output resolution is as below

1920x1080p 60fps

1920x1080p 50fps

1920x1080p 30fps

1920x1080p 25fps

1280x720 60fps

1280720 50fps

usb webcam compatible:

1. just for USB2.0 mode webcam

    (elgato facecam can not work)

2.  MJPG uvc is best.

3. uvc resolution is up to 1920x1080p 30fps mjpg

   (do not support 4k).

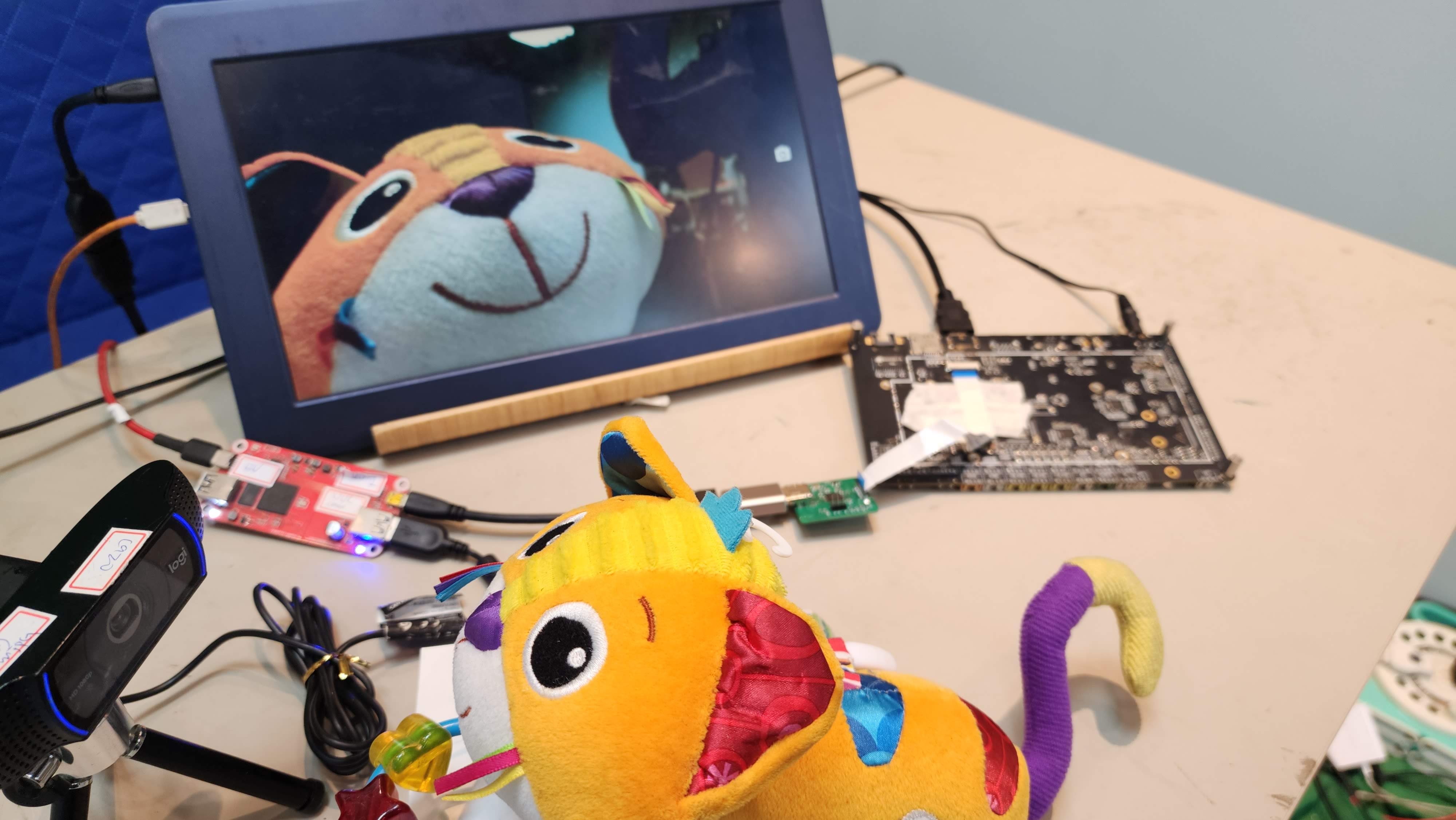

for eample
