USB WEBCAM to iOS / HDHMI dapter (with lightning hub & usb ethernet dongle)

After 05/03/2022 shipping, we will use new case!!!

Shipping package:

1. USB webcam to iOS / HDMI adapter

2. lightning hub

3. USB ethernet dongle

Turn your UVC webcam to iOS and live streamings

Turn USB UVC webcam to iOS

APP: medialink switcher (iOS14 above)

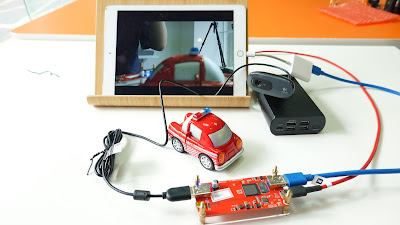

1. USB WEBCAM be live streaming on iPad

2. atem mini pro be live streaming on iPad

WORK

Logitech c270, c310,c525, c92x, c93x, BCC950 , Brio 4k, c615
Logitech 4k pro magnetic webcam
logitech streamcam
IPEVO V4K
OBS BOT TINY
insta360 ONE R 4k camera
Microsoft webcam
MEVO START
MEVO PLUS

Lumina webcam
USB-C output of ATEM MINI

No TEST

AVer CAM340+ , AVer CAM520 PRO

2020 New version UVC webcam to iOS adapter & hdmi output

This adapter have two main function

1. uvc webcam to hdmi

2. uvc webcam to iOS ( release API SDK)

① This adapter can connect USB2.0 formal webcam

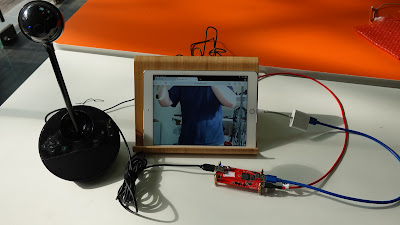

eg: MEVO START, Logitech C310, C525, C270, BCC950 , BRIO 4K HD, C920 Microsoft HD-3000 lifeCam,

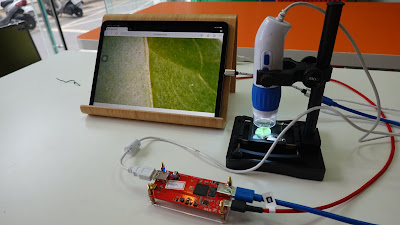

IPEVO P2V, ZIGGI (old version), oitez DP-M06 microscope,

USB endoscope (cheap China made) , USB telescope (medical level), OSTEC skin microscope,

WORK

Logitech c270, c310,c525, c92x, c93x, c615, bcc950
Logitech 4k pro magnetic webcam
logitech streamcam
logitech BCC950 , Brio 4k,
IPEVO V4K
Microsoft webcam
MEVO START
MEVO PLUS
insta360 one R 4k camera
USB-C OUTPUT OF ATEM MINI (real frame rate is about 20fps)

No WORK

AVer CAM340+ , AVer CAM520 PRO

FEBON179PLUS UVC HDMI CAPTURE CARD

J5create JVCU100

② This adapter CAN NOT connect USB3.0 mode uvc

you need check if your USB3.0 video device can be drop into USB2.0 mode

eg: USB3.0 FEBON169 uvc capture card can drop into USB2.0 mode

USB3.0 elgato Cam Link capture card CAN NOT drop into USB2.0

③ app1: medialink switcher (for 2021 new iPhone13 /iPad, it just simple basic function)

app2: uvcplayer

It can not "directly" work on iOS app : iOS SKYPE, iOS zoom meeting, iOS google meet, iOS facebook , iOS youtube and etc

these app just can get internal iOS camera. it can not get external camera.

it just can "screen share" for iOS ZOOM MEETING, GOOGLE MEET , iOS facebook , iOS youtube and etc

⑤ UVC INPUT resolution and HDMI / iOS OUTPUT resolution is as below

UVC INPUT : Up to 1920x1080 mjpg

HDMI / UVC OUTPUT : up to 1920x1080

Turn ATEM MINI USB-C webcam output be hdmi output.

multi-view and PGM (Clean hdmi) together

Any major USB webcam be hdmi or iOS output.

USB WEBCAM as video source for video switcher use.

OBSBOT TINY can work with HDMI VIDEO SWITCHER (atem mini pro) and work on iPad

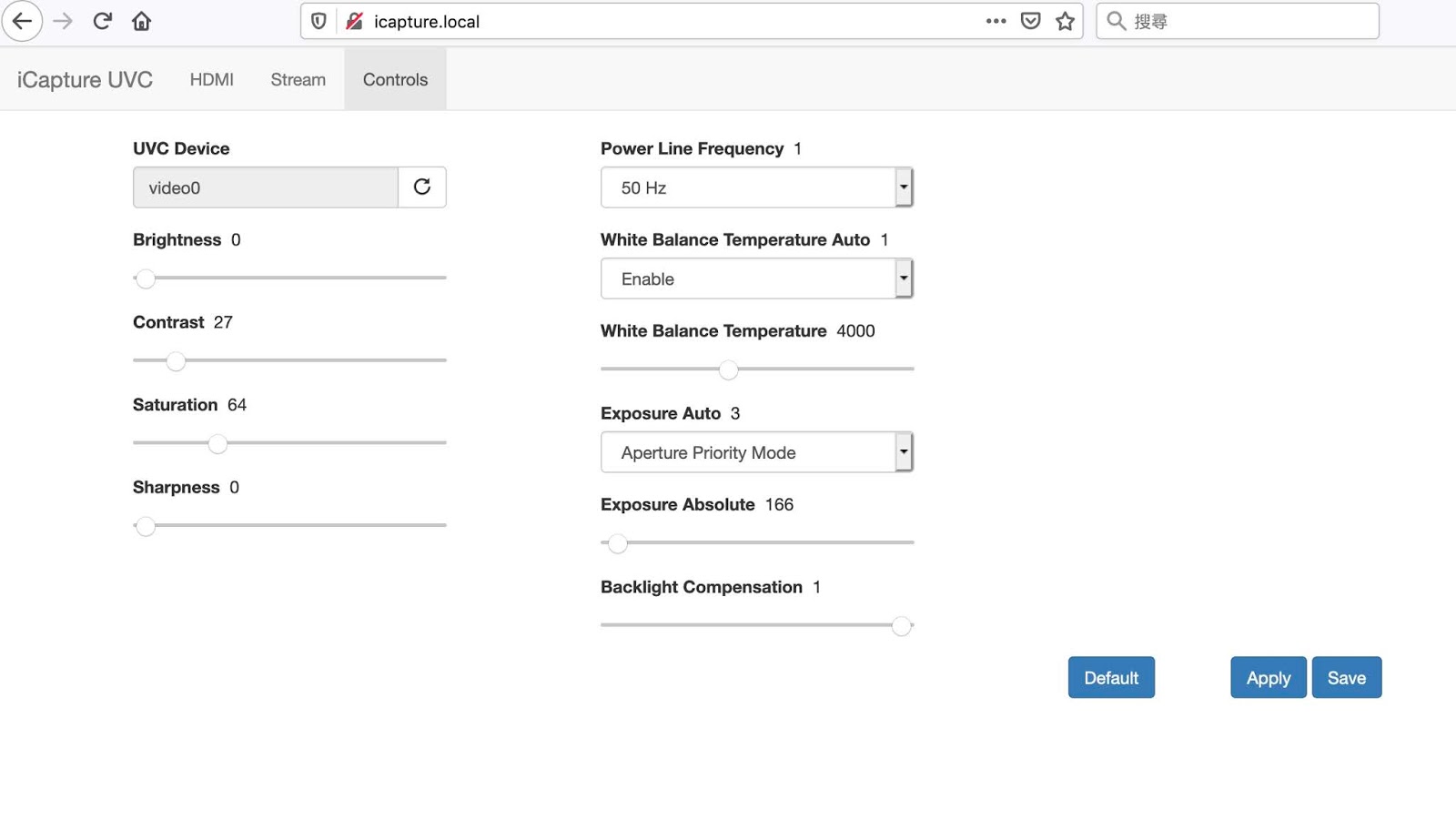

if you need modify UVC or hdmi parameter, you just connect with PC usb port to control

UVC webcam color parameter

2. UVC / HDMI resolution parameter

MAC/iOS:
F/W upgrade : http://icapture.local:8888/fw/
setup parameter on chrome http://icapture.local/
VLC play: http://icapture.local/live.flv

Windows:
F/W upgrade : http://172.20.13.168:8888/fw/
setup parameter on chrome: http://172.20.13.168
VLC play : http://172.20.13.168/live.flv

API (SDK ) tool:

We will release API /SDK for the secondary app development use.

Communication is HTML5 websocket http TCP video streaming.

you can use free APP to test

eg: iOS app VLC , iOS app rtsp viewer , iOS chrome and etc.

Depend on the open streaming, you can develop your own APP over our adapter.

eg: webRTC , live streaming app , and etc

The video latency is as belowRaw data tcp mode: video latency 110ms(Video Streaming with NODE.JS and html5)h.264 tcp mode: 230ms

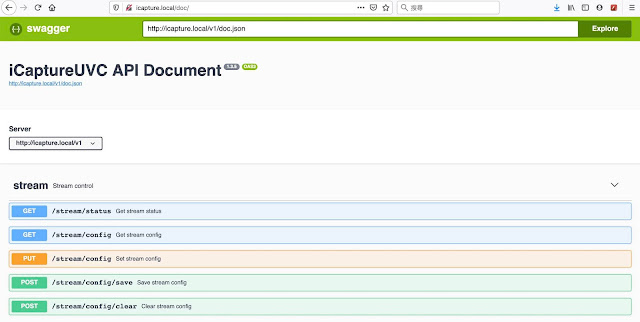

API (SDK) document is embedded url interface

Swagger UI API Development Tools
