FEBON iOS HDMI capture card (Champagne metal case)


Support iOS12~iOS16




Package:

1. FEBON iOS HDMI capture card (black metal case)

2. USB3.0 TYPE A to TYPE A cable

3. Lightning to USB3.0 camera adapter
4. xiaomi 18w DC power adapter  (5V 3.6A)
5. micro usb cable
6. lightning extend cable

-


US$276.0
Availability: 缺貨

Tags:





Support iOS12~iOS16

Package:

1. FEBON iOS HDMI capture card (black metal case)

2. USB3.0 TYPE A to TYPE A cable

3. Lightning to USB3.0 camera adapter
4. xiaomi 18w DC power adapter  (5V 3.6A)
5. micro usb cable
6. lightning extend cable

-




iOS app: medialink Live (stable  app)
SUPPORT iPhone6 ~ iPhone13



iOS app: medialink switcher

DO NOT SUPPORT 2021 new iPhone iPad
eg: iPhone 13 , 2021 iPad pro and etc.

1.basic function: (free use)
2. free app for iOS Capture card
3.auto login facebook live (profile / page / group)
   auto login youtube live
   atuto login twtich live
  custom RTMP (RTMPS)
4. add Logo function
5. 1920x1080 /1280x720/ 640x360
  720x1280 (portrait mode for facebook live)

1. advance function: (need money)
2. money charge : US$2/ week for charge app
3.auto login facebook live (personal / page)
   auto login youtube live
4. PIP /video switch  / overlay
   overlay: time, picture, score board and etc
5.1920x1080 /1280x720/640x360
6. see message for facebook live (profile, page, group) and youtube
7. write message for facebook live ( page only) and youtube








Lightning iPhone iPad connection USB-C iPad connection


 iOS hdmi Capture card application

2018 iPad Pro (USB-C ) application
 camcorder be live streaming with iPad pro type C connector iPad Pro 2018 (USB-C) as a TV monitor




ATEM mini video switcher with iPad for live streaming

BMD ATEM mini with iPad pro (USB-C) for facebook live streaming



ipad as 2nd external monitor & live streaming for PC / MAC at the same time iPad as TV monitor Camcorder be TWITCH IRL live streaming with mobile phone and how to be packaged in bag
Connect SONY AS300 Action Cam to iPad (iPhone) with live streaming iPad as Monitor for Raspberry pi by FEBON iCapture hdmi Capture card How To Turn Your iPad iPhone Into camcorder Screen
GoPro hero 6 be Twitch live streaming with iPhone How to use GOPRO HERO 7 black be Facebook live streaming and settings with iOS How to let GoPro hero 5 be live streaming with iOS
How to use SONY camcorder be facebook live stream with iPhone GoPro with seamless video switcher & be facebook live streaming on iPad DSLR as external camera for iPhone with facebook live stream







item1: (for free app medialink live / medialink switcher use)



medialink switcher:

DO NOT SUPPORT 2021 new iPhone iPad
eg: iPhone 13 , 2021 iPad pro and etc.

medialink live

SUPPORT iPhone6 ~iPhone13



Before you plug  FEBON iCapture hdmi grabber card,  medialink live app CAN NOT use facebook live
After you plug FEBON iCapture hdmi grabber card, medialink live  app  CAN use facebook live
    ① AUTO login facebook live ( personal / fans page live / group live )
    ② AUTO login  twitch live. ( Twitch IRL livestreaming)

    ③ custom RTEMP live streaming

     ④auto login yotube live
        for first use, please use PC browser to turn on old version youtube live page
         after that, you can use app medialink live to do youtube live
         you just turn on that  for the first time

       when you want to do youtube live next time, you do not necessary to turn on PC  old version youtube live







item2: For iOS systm, FEBON iCapture just can work on our app "medialink live " or. "medialink switcher" two app only
① It just can work on our iOS app "medialink live.  it "CAN NOT directly" work on anther iOS app eg: instagram /skype /facetime /zoom app.
     We DO NOT release SDK  (software design kit) or API now!
    iOS hdmi capture can share the video & audio for iOS zoom /skype /google meet by "screen share"
DO NOT release API /SDK


   if you need develop your own app & get API SDK, please buy below link
        UVC webcam to iOS adapter
FEBON iCapture can work on windows / mac osx / android
After 15/01/2020 purchase,  FEBON iCapture grabber card can work on MAC OSX and widnows
Windows : video only  (no audio)
MAC OSX : video & audio together.
android: android10 or 11, camerafi live app






item3:  see or write livestreaming message
① for app "medialink live" use :  you can not see the chat message and can not reply message on the same iphone
if you want to see chat message or replay message, you need use another phone (android or iPhone)
② for app "medialink switcher" use:
see message:  facebook live ( profile , page, group) and youtube live

write message: facebook live ( page only). and youtube live

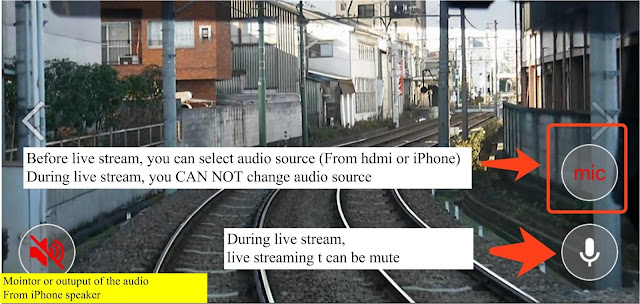

item4: audio source

How to be  audio source as live streaming ?
if camera do not live audio , you need select iPhone MIC as live streaming audio source
(eg: CANON 500d)


item5:  not all of camera can be as live streaming
you need test by yourself

step1: plug your camera hdmi output with TV
step2: open TV

if TV have live video, your camera can be as live streaming video source
it TV have audio echo, your camera can be as live streaming audio source

https://youtu.be/IyR9apLj6Is


item6: system requirment :

Support iOS12~iOS16
iPhone requirement: iPhone 6S  up is better
iPad requirement : iPad AIR

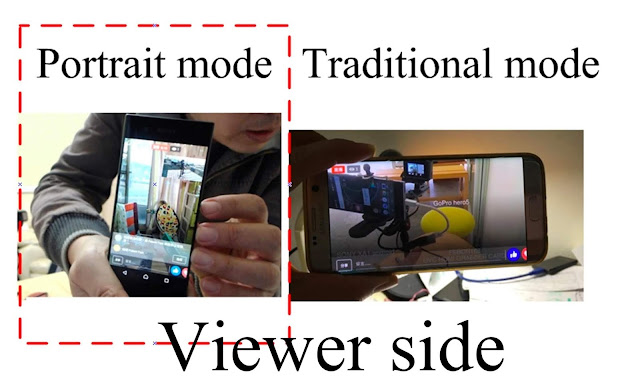

Item7: some iPhone /iPad can support 720X1280 Portrait mode

i6S/i6S Plus/se/i7/i7 Plus/i8/i8 Plus/iX/iXS/iXR/iXS Max/all iPad Pro/iPad 5 up/iPad Air3/iPad mini5[A9 up]
==>support Portrait mode



Product SPEC:

1. HDCP off
2. The power consumption is about 550mA @ 5V
3. video latency 0.1 sec   @720p hdmi source and 720p video output.
4. output resolution
    facebook live: up to 720p 30fps , 4000kbps
    youtube live :  up to 1080p 30fps , 10000kbps
   twitch live : up to  1080p 30fp , 10000kbps
   local record: up to1080p 30fps, 15000kbps


iOS APP: medialink live

1.best  video frame rate of live streaming
2. bit rate control Optional
3. AUTO login facebook live ( personal / fans page /group live)
    AUTO login  twitch live. ( Twitch IRL livestreaming)
   custom RTEMP live streaming
   AUTO login youtube live

For iOS app "medialink live"
Before you plug  FEBON iCapture hdmi grabber card, you CAN NOT use facebook live
After you plug FEBON iCapture hdmi grabber card, you CAN use facebook live


4. audio select :  hdmi audio source /  iOS internal Mic





5. overlay logo function  (optional)
   After you pay US$10, you can use this function forever

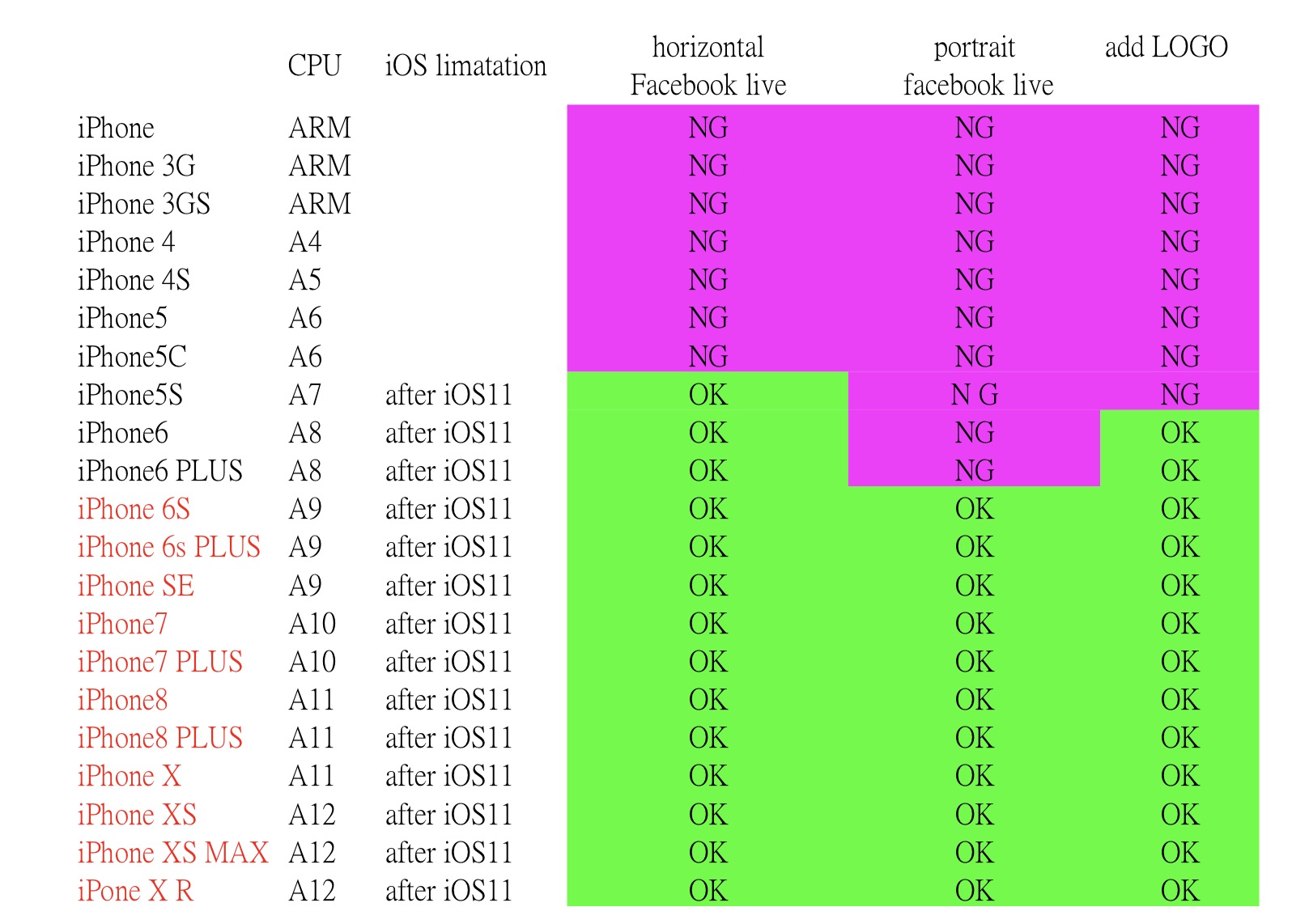

 [with A7/A8 CPU devices as following,    iPhone 6/iPhone 6 Plus/iPad Air are not supported]




How to use FEBON iCpature HDMI grabber card?

日本語:





-
-
-
-
real twitch IRL (In Real Life) live streaming demo

facebook Live
SONY AS300 sport camera
1280x720p live
facebook live
SONY AS300 sport camera
1280x720p live
TWITCH LIVE ( BACK UP in Youtube)
SONY AS300 Sport camera
1920x1080p 30fps
Youtube LIVE
SONY AS300 Sport camera
1920x1080p 30fps








 how to be live streaming on iPhone ?


 iCapture grabber card live streaming with Youtube live  iCapture grabber card live streamingwith facebook live








iOS  capture card can work with iPhone  iPad directly

1.camcorder DSLR be live streaming with iPhone to Youtube Live / facebook live (personal)
2.
let iPad as a TV monitor .


APPLICATION1:  live streaming


SONY Camcorder be live streaming with iPhone


--

SONY AS300 be live streaming with iPad



GoPro hero 5 be live streaming with iPhone


-
-
-
APPLICATION1: iPad as monitor for PC / CAMERA / Raspberry pi  / multimedia box
iPad as a second monitor display for pc / mac
iPad as Monitor for multimedia box
iPad as monitor for CANON DSLR
iPad as monitor for Raspberry pi


-
-

-d
-

-
-
-
-
-

Video latency
The video latency of iOS hdmi cpature card is about 0.08-0.1 sec
