USB UVC webcam to iOS adapter & hdmi output ( with iOS adapter)

Name: USB UVC webcam to iOS adapter & hdmi output ( with iOS adapter)
Brand: USB UVC webcam to iOS adapter & hdmi output ( with iOS adapter)
Price: 3272 TWD
Availability: InStock

After after 05/03/2022 shipping, we will use new case!!!

Shipping package:

1. USB webcam to iOS / HDMI adapter

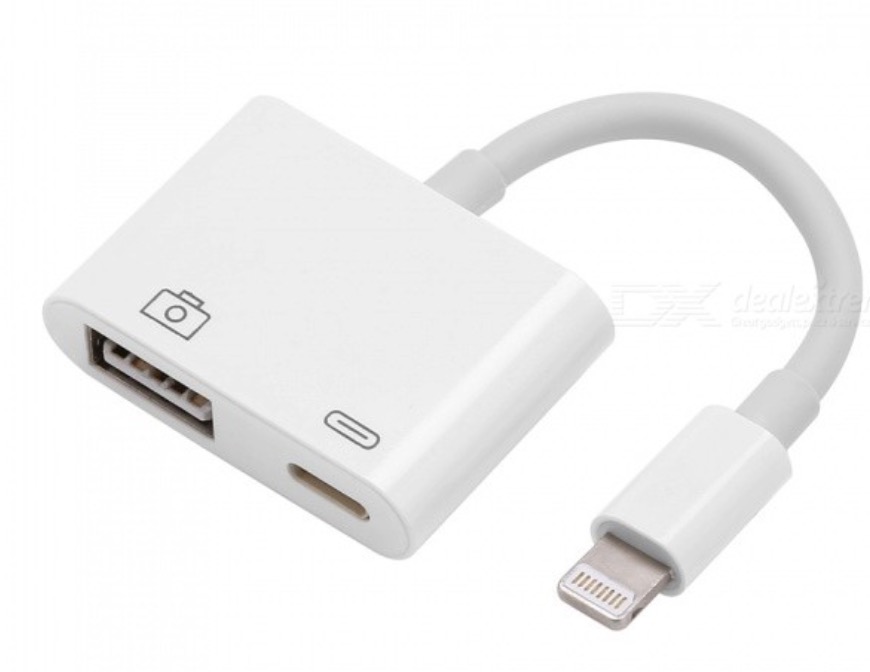

2. apple lighting to USB3 camera adapter

This kit can turn USB UVC WEBCAM into HDMI and iOS

1. Turn USB UVC WEBCAM to HDMI:

usb webcam can display on a TV or connect with a video switcher ( atem mini)

Function1: Turn your UVC webcam to hdmi
advantage:
1. it just spend 11 sec to turn on hdmi output
2. you do not need USB Mouse
3. if you need modify UVC or hdmi paramter, you just connect with PC usb port to contorl
(use browser)
Windows Chrome / mac / iOS http://172.20.13.168

application 1: turn usb webcam into hdmi output

logitech webcam into hdmi

insta360 ONE R into hdmi outupt

appplication 2: turn usb-c output of atem mini pro into hdmi output

atem mini pro can mutliview and PGM view together

APP 1: UVC player

APP 2: medialink switcher ( iOS14 above )

Function2: Turn your UVC webcam to iOS

advantage:
1. it just spend 11 sec to turn on hdmi output
2. you do not need USB Mouse
3.Support API (SDK). You can develop your own app

Turn USB UVC webcam to iOS

USB WEBCAM to iOS adapter is a bridge between iOS and UVC WEBCAM.

2.1 USB webcam can work with on a iPad iPhone. You also can develop your own app with external USB webcam

2.2. support API . you can develop your own APP .

2.3. function test app : uvcplayer ,

live streaming app : medialink switcher (beta version, audio have a little problem)

WORK	Logitech c270, c310,c525, c92x, c93x, BCC950 , Brio 4k, c615 Logitech 4k pro magnetic webcam logitech streamcam IPEVO V4K OBS BOT TINY insta360 ONE R 4k camera Microsoft webcam MEVO START MEVO PLUS USB-C output of ATEM MINI (real frame rate is about 20fps)
No TEST	AVer CAM340+ , AVer CAM520 PRO

2020 New version UVC webcam to iOS adapter & hdmi output

This adapter have two main function

1. uvc webcam to hdmi

2. uvc webcam to iOS ( release API SDK)

① This adapter can connect USB2.0 formal webcam

eg: MEVO START, Logitech C310, C525, C270, BCC950 , BRIO 4K HD, C920 Microsoft HD-3000 lifeCam,

IPEVO P2V, ZIGGI (old version), oitez DP-M06 microscope,

USB endoscope (cheap China made) , USB telescope (medical level), OSTEC skin microscope,

② This adapter CAN NOT connect USB3.0 mode uvc

you need check if your USB3.0 video device can be drop into USB2.0 mode

eg: USB3.0 FEBON169 uvc capture card can drop into USB2.0 mode

USB3.0 elgato Cam Link capture card CAN NOT drop into USB2.0

③ It can not "directly" work on iOS app : iOS SKYPE, iOS zoom meeting, iOS google meet, iOS facebook , iOS youtube and etc

these app just can get internal iOS camera. it can not get external camera.

it just can "screen share" for iOS ZOOM MEETING, GOOGLE MEET , iOS facebook , iOS youtube and etc

WORK	Logitech c270, c310,c525, c92x, c93x, c615, bcc950 Logitech 4k pro magnetic webcam logitech streamcam logitech BCC950 , Brio 4k, IPEVO V4K Microsoft webcam MEVO START MEVO PLUS insta360 one R 4k camera USB-C OUTPUT OF ATEM MINI (real frame rate is about 20fps)
No TEST	AVer CAM340+ , AVer CAM520 PRO

⑤ UVC INPUT resolution and HDMI / iOS OUTPUT resolution is as below

UVC INPUT : Up to 1920x1080 mjpg

HDMI / UVC OUTPUT : up to 1920x1080

Turn ATEM MINI USB-C webcam output be hdmi output.

multi-view and PGM (Clean hdmi) together

Any major USB webcam be hdmi or iOS output.

USB WEBCAM as video source for video switcher use.

OBSBOT TINY can work with HDMI VIDEO SWITCHER (atem mini pro) and work on iPad

if you need modify UVC or hdmi parameter, you just connect with PC usb port to control

UVC webcam color parameter

2. UVC / HDMI resolution parameter

MAC/iOS:
F/W upgrade : http://icapture.local:8888/fw/
setup parameter on chrome http://icapture.local/
VLC play: http://icapture.local/live.flv

Windows:
F/W upgrade : http://172.20.13.168:8888/fw/
setup parameter on chrome: http://172.20.13.168
VLC play : http://172.20.13.168/live.flv

API (SDK ) tool:

We will release API /SDK for the secondary app development use.

Communication is HTML5 websocket http TCP video streaming.

you can use free APP to test

eg: iOS app VLC , iOS app rtsp viewer , iOS chrome and etc.

Depend on the open streaming, you can develop your own APP over our adapter.

eg: webRTC , live streaming app , and etc

The video latency is as belowRaw data tcp mode: video latency 110ms(Video Streaming with NODE.JS and html5)h.264 tcp mode: 230ms

API (SDK) document is embedded url interface

Swagger UI API Development Tools
