HDMI-UVC DualMode converter! dji pocket 3 to HDMI Logitech to HDMI uvc to hdmi

UVC & HDMI input comaptitble

HDMI input (INPUT A , INPUT B hdmi port)

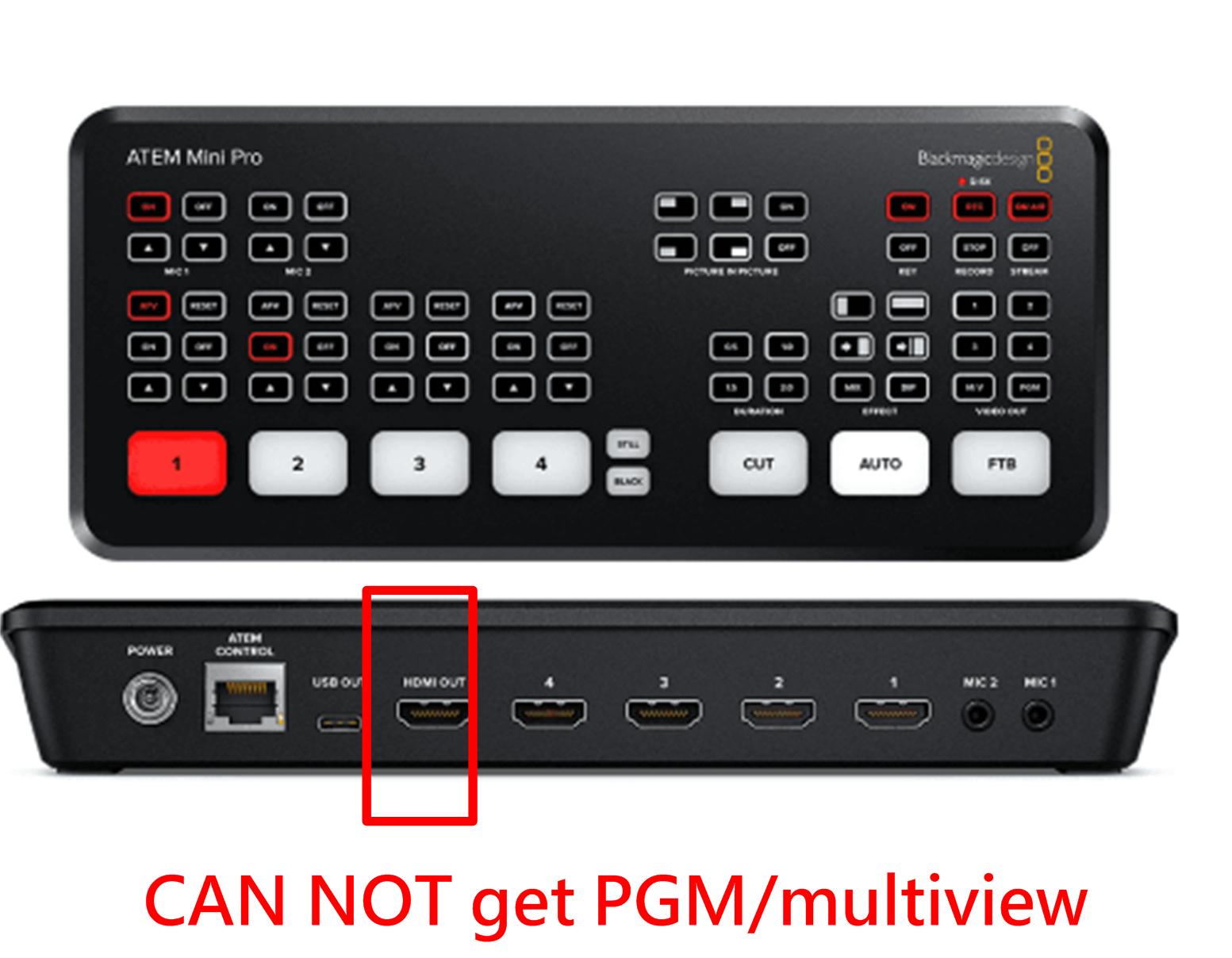

It CAN NOT connect hdmi output of atem mini series.

But my adapter hdmi output can connect to atem mini pro Ch2 ~ CH4.

For  INPUT B UVC INPTUT, it can not connect camera as below

 pure USB3.0 WEBCAM : (CAN NOT use!!)

Elgato Facecam, Elgato camlink series, Avermedia BU113 , PW513..

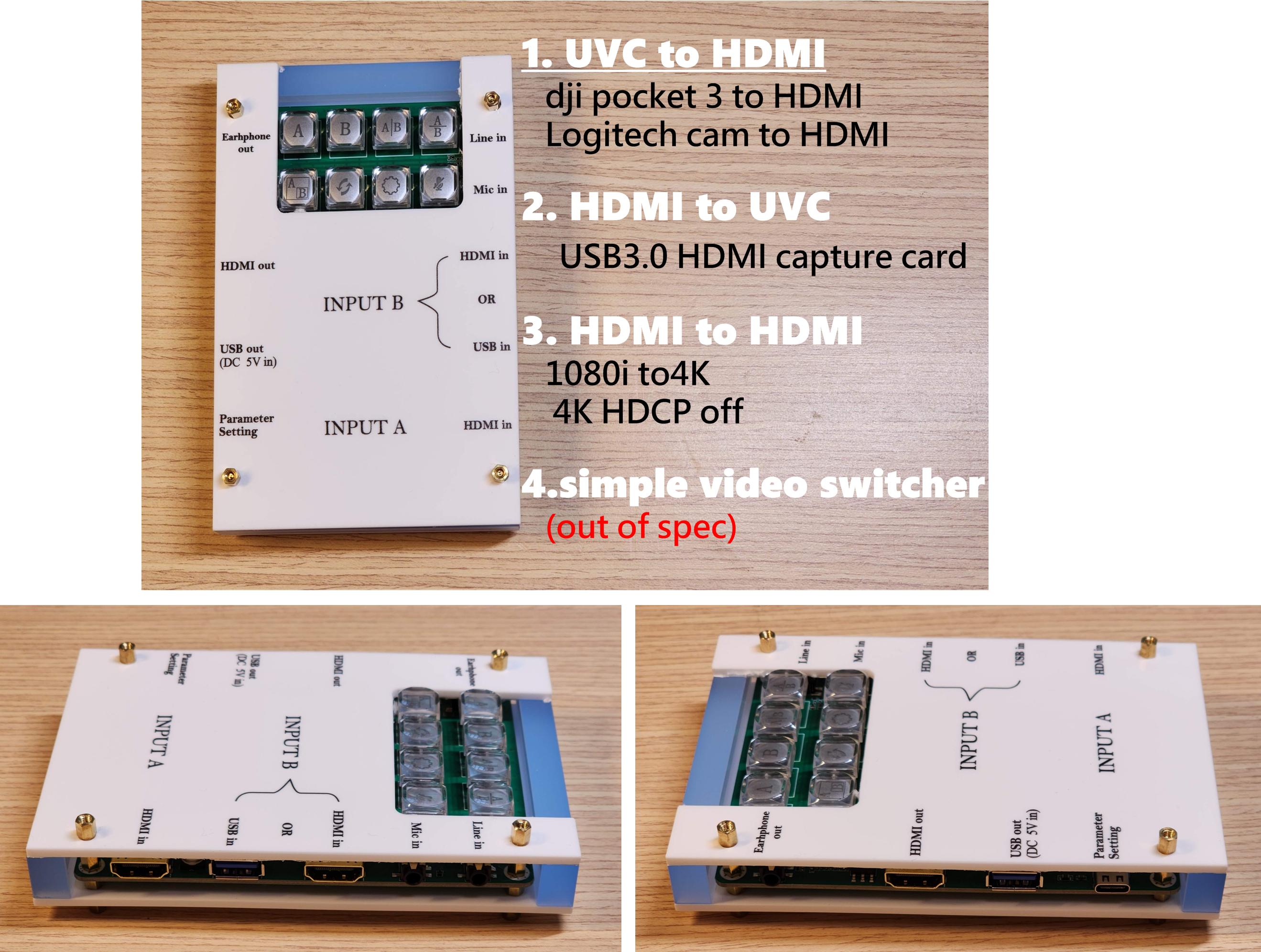

There are 4 main functions!!

1. UVC to HDMI : usb webcam connect to video switcher (atem mini pro)

2. HDMI to UVC : HDMI capture card

3. HDMI to HDMI:  1080i to 1080P, 1080p to 4K  , 4K HDCP off

4. simple video switcher (beta function. out of sepc)

UVC and HDMI bidirectional reversible mutual conversion

Product Brief

1.At the same time, INPUT A & INPUT B together

2.At the same time,  INPUT B is just only one

USB webcam input or hdmi input

3.At the same time,  HDMI output and USB output together

4.USB out connect PC or DC 5V power adapter

Connect PC: UVC output, pc provide power for adapter

Standalone: USB out port connect DC 5V adapter

(UVC to hdmi , hdmi to hdmi as standalone)

5.connect upgrade with PC

you can setup audio on/off pip /side by side and icon definition

turn on browser

http://172.20.13.168

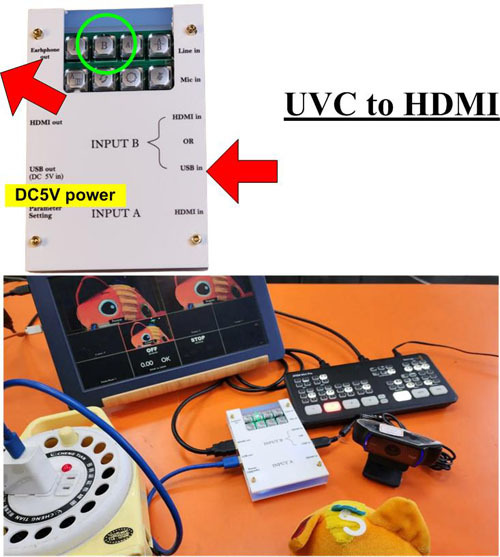

UVC to HDMI  :

USB webcam connect to video switcher (atem mini pro)

Step1: USB out connect DC 5V power adapter

Step2 USB webcam connect INPUT B (USB in)

Step3: press icon B

Step4: HDMI output connect video switcher

     Example: atem mini pro hdmi 2, 3, 4

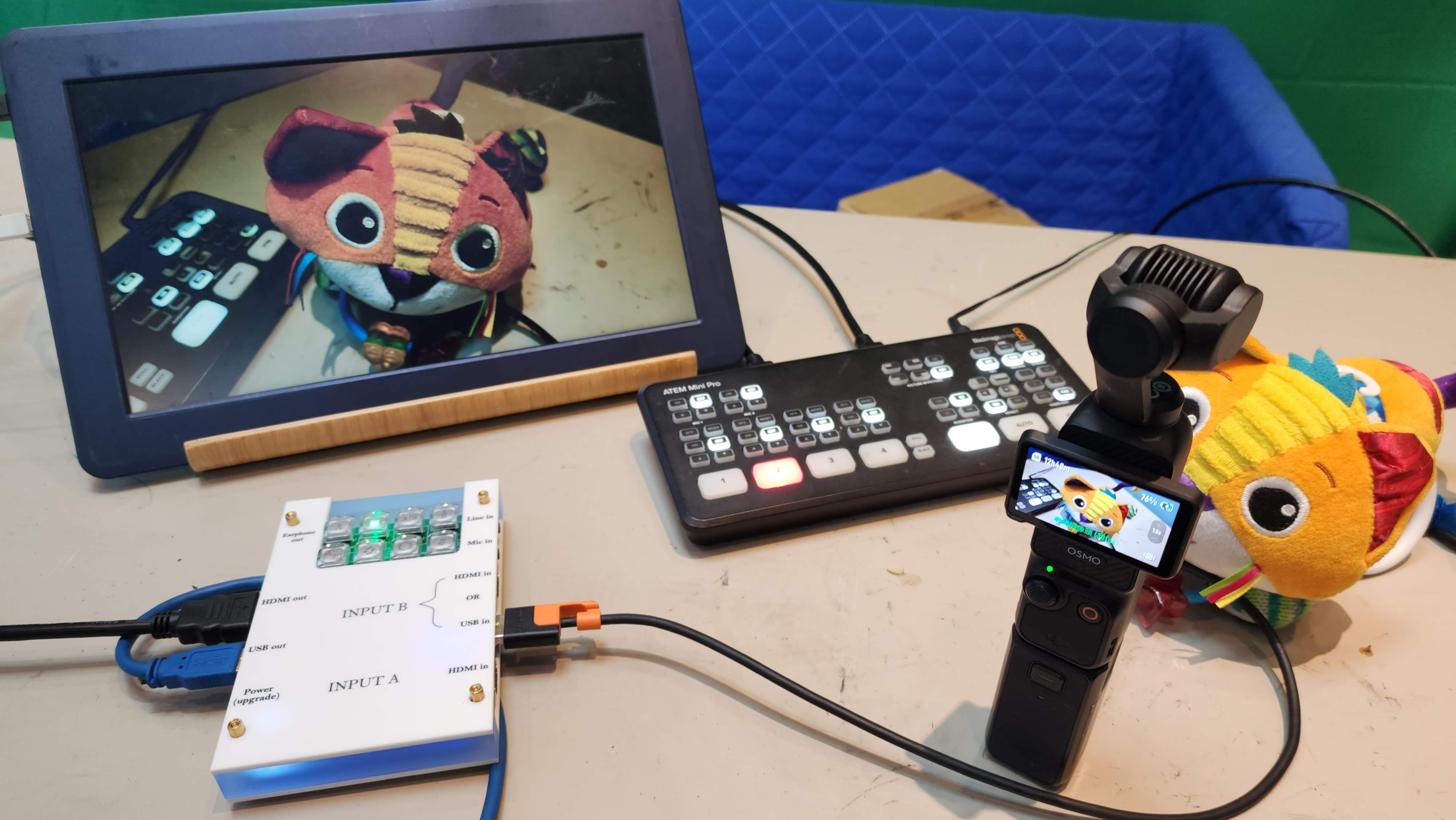

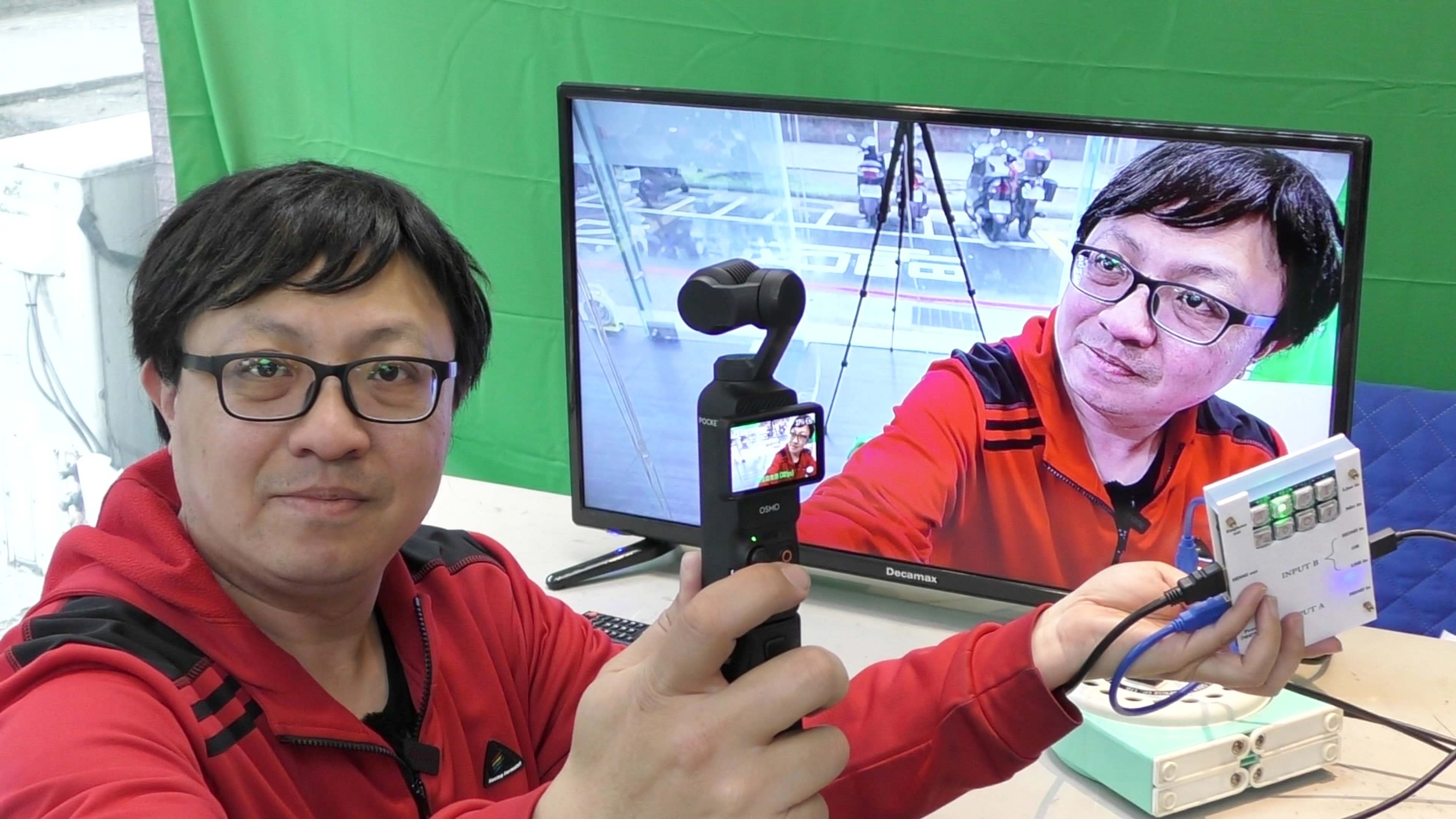

Turn DJI pocket 3 to HDMI

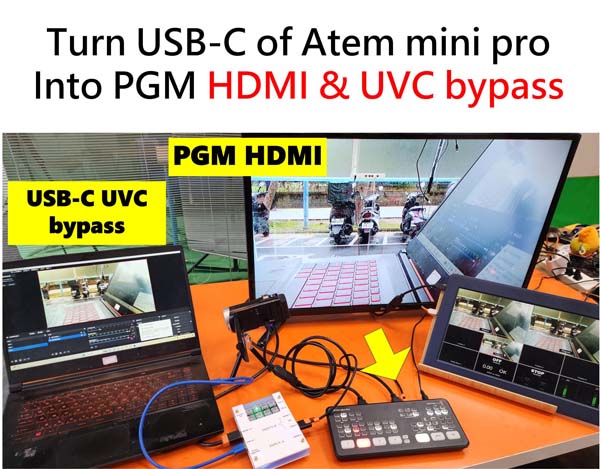

Turn USB-C of atem mini pro into PGM HDMI &  UVC bypass

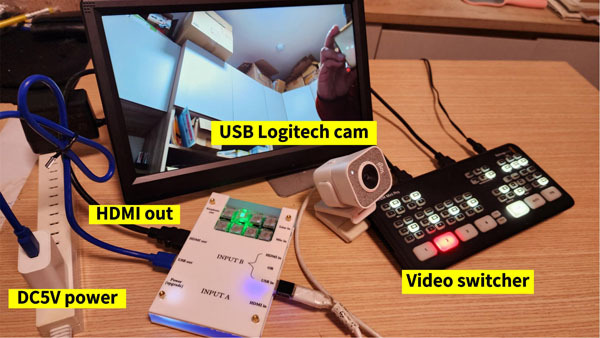

Turn Logitech webcam to HDMI

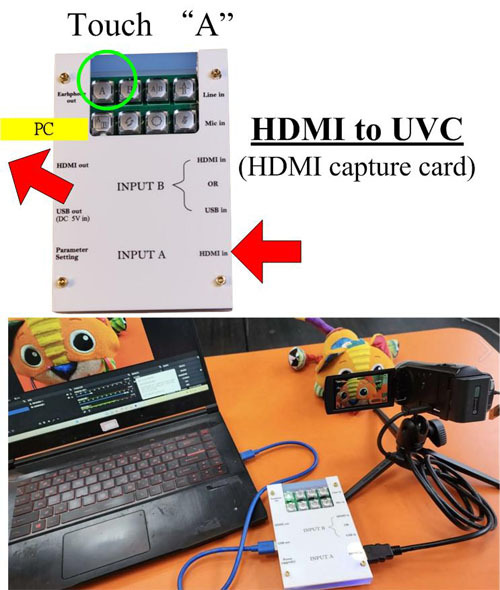

HDMI to UVC :

(HDMI capture card)

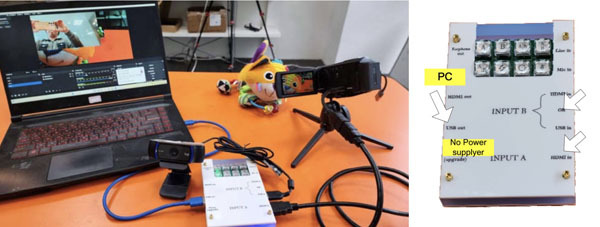

Step1: USB out connect PC

Step2 HDMI source connect  INPUT A or INPUT B hdmi port

Step3: press icon A or B

Step4: turn on PC software. Example : OBS , SKYPE, GOOGLE MEET…

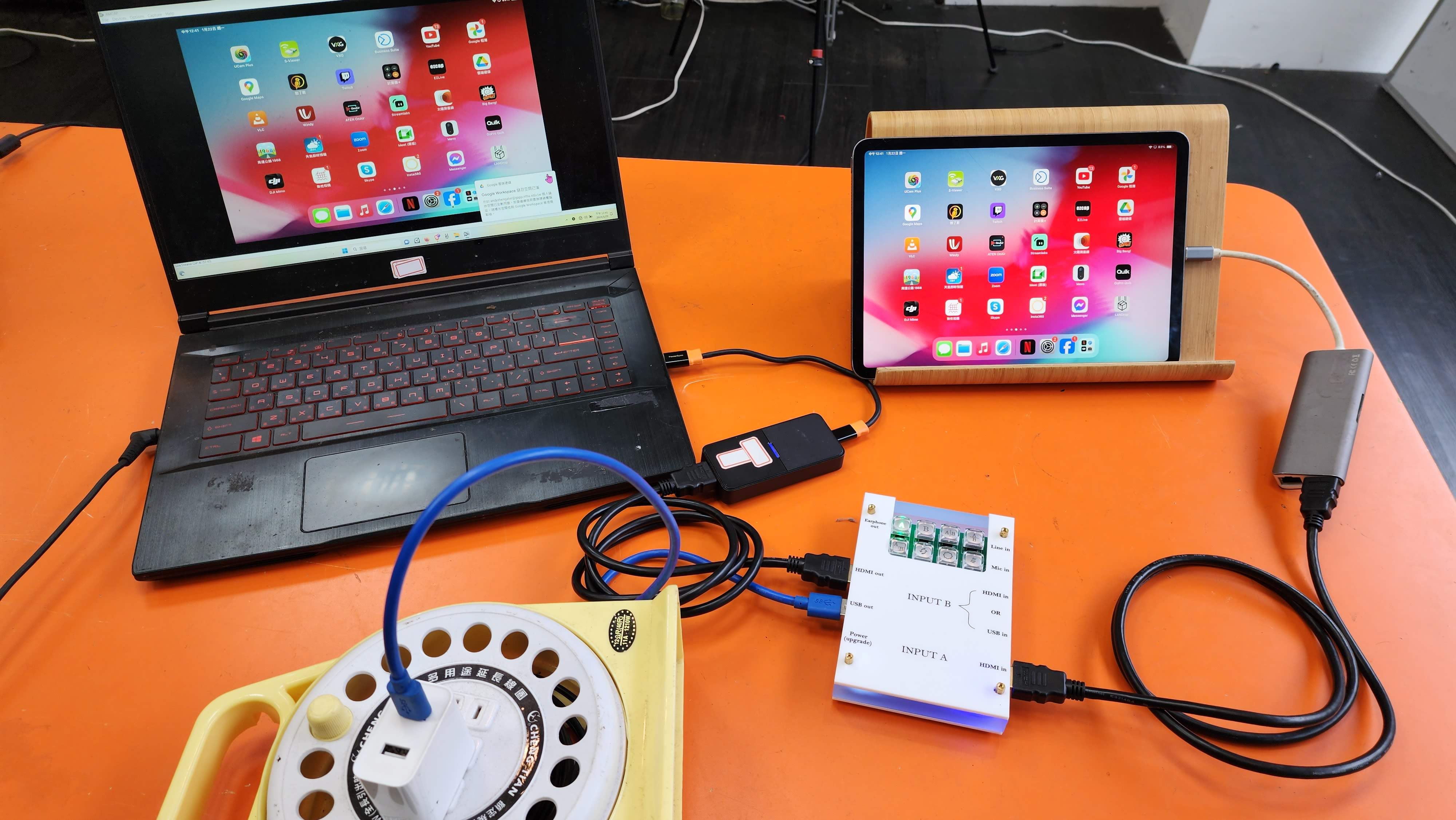

iPad as video source and PC OBS can display or record or live streaming

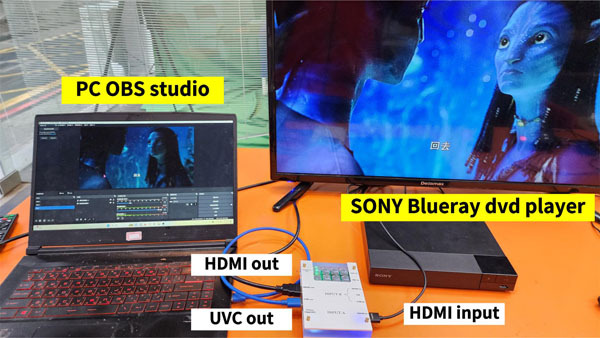

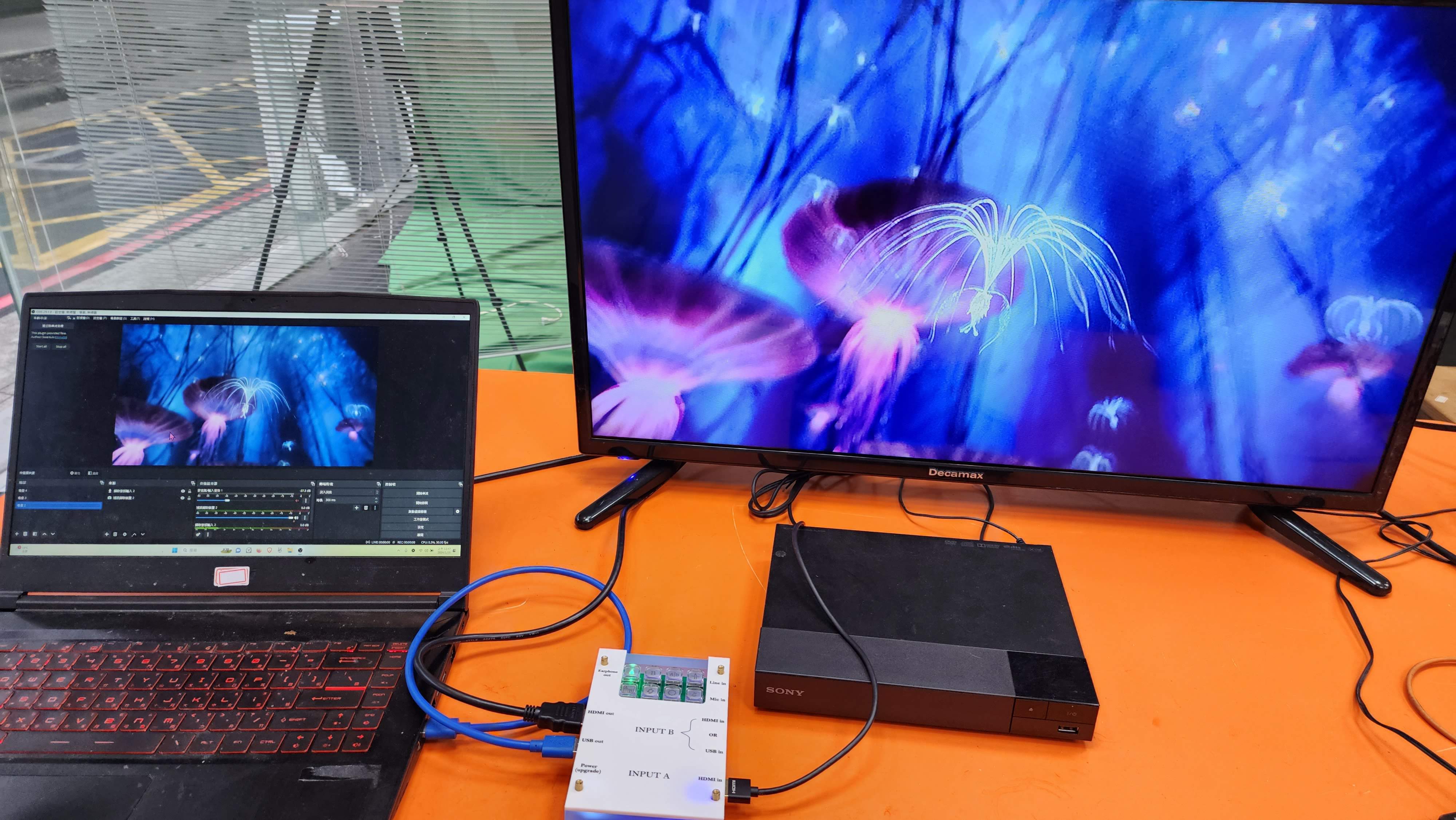

DVD player display on OBS

HDMI to HDMI  :

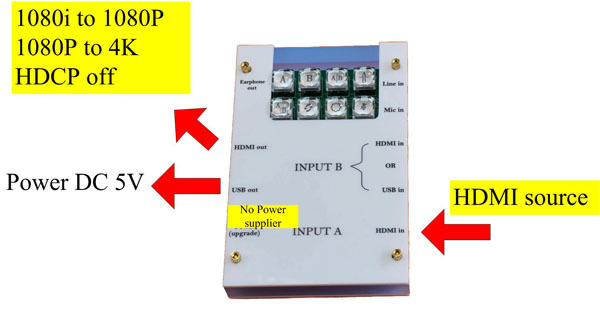

1. 1080i to 1080P

2.  1080p to 4K

3.   HDMI protection off

for example:

HDMI source is  iPad / SONY blueray dvd....

after process,  camlink  or Avermedia 4k capture card can connect this hdmi video.

Simple video switcher  :

(beta test function. out of sepc)

For audio setting / pip /side by side setting,

connect USB cable with “upgrade” to PC and use browser to setting

  http://172.20.13.168

1.  HDMI camera & USB webcam connect together

      INPUT A connect HDMI source (hdmi in port).

     INPUT B connects USB WEBCAM (USB in port)

2. Two HDMI source input

input A connect HDMI 1 INPUT , INPUT B connect HDMI 2 INPUT

Product spec

1. INPUT A HDMI inputt : up to  4k 60fps hdmi

2. INPUT B  HDMI input : up to  4k 60fps hdmi

            USB webcam input: see the below table list

3.USB UVC out: up to 1080p 60fps YUV/ MJPG

4. HDMI out:  up to 4k 30fps. Default shipping is 1920X1080P 60FPS or 50FPS

5. At the same time, HDMI OUT & UVC out can output together.

6. use upgrade port connect to PC and setup parameter

    http://172.20.13.168
