USB WEBCAM to iOS / HDHMI adapter (without lighting to usb3 adapter)
support iOS 16
If payment error, you can try this purchase link (PayPal base)
https://www.febon.net/products/uvc-to-hdmi-uvc-to-ios
UVC webcam compatible issue
| WORK | Logitech c270, c310,c525, c92x, c93x, BCC950 , Brio 4k, c615 Avermedia PW515 , PW315 Lumina webcam |
| No WORK |
FEBON179PLUS UVC HDMI CAPTURE CARD J5create JVCU100 |
US$280.2
Availability: In Stock
Shipping package:
USB webcam to iOS / HDMI adapter
This kit can turn USB UVC WEBCAM into HDMI and iOS
1. Turn USB UVC WEBCAM to HDMI:
usb webcam can display on a TV or connect with a video switcher ( atem mini)
Function1: Turn your UVC webcam to hdmi
advantage:
1. it just spend 11 sec to turn on hdmi output
2. you do not need USB Mouse
3. if you need modify UVC or hdmi paramter, you just connect with PC usb port to contorl
(use browser)
Windows Chrome / mac / iOS http://172.20.13.168
advantage:
1. it just spend 11 sec to turn on hdmi output
2. you do not need USB Mouse
3. if you need modify UVC or hdmi paramter, you just connect with PC usb port to contorl
(use browser)
Windows Chrome / mac / iOS http://172.20.13.168

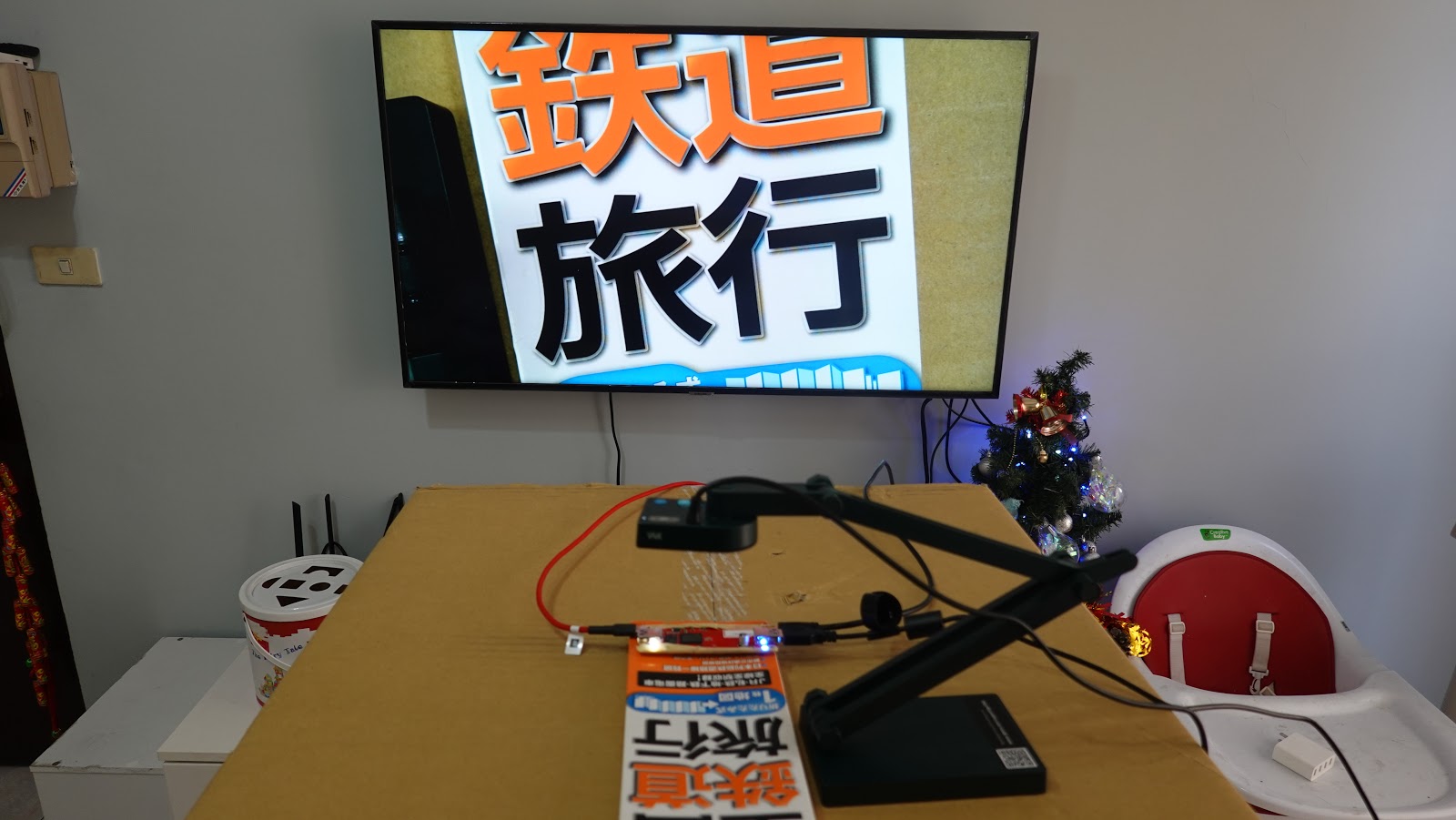

application 1: turn usb webcam into hdmi output

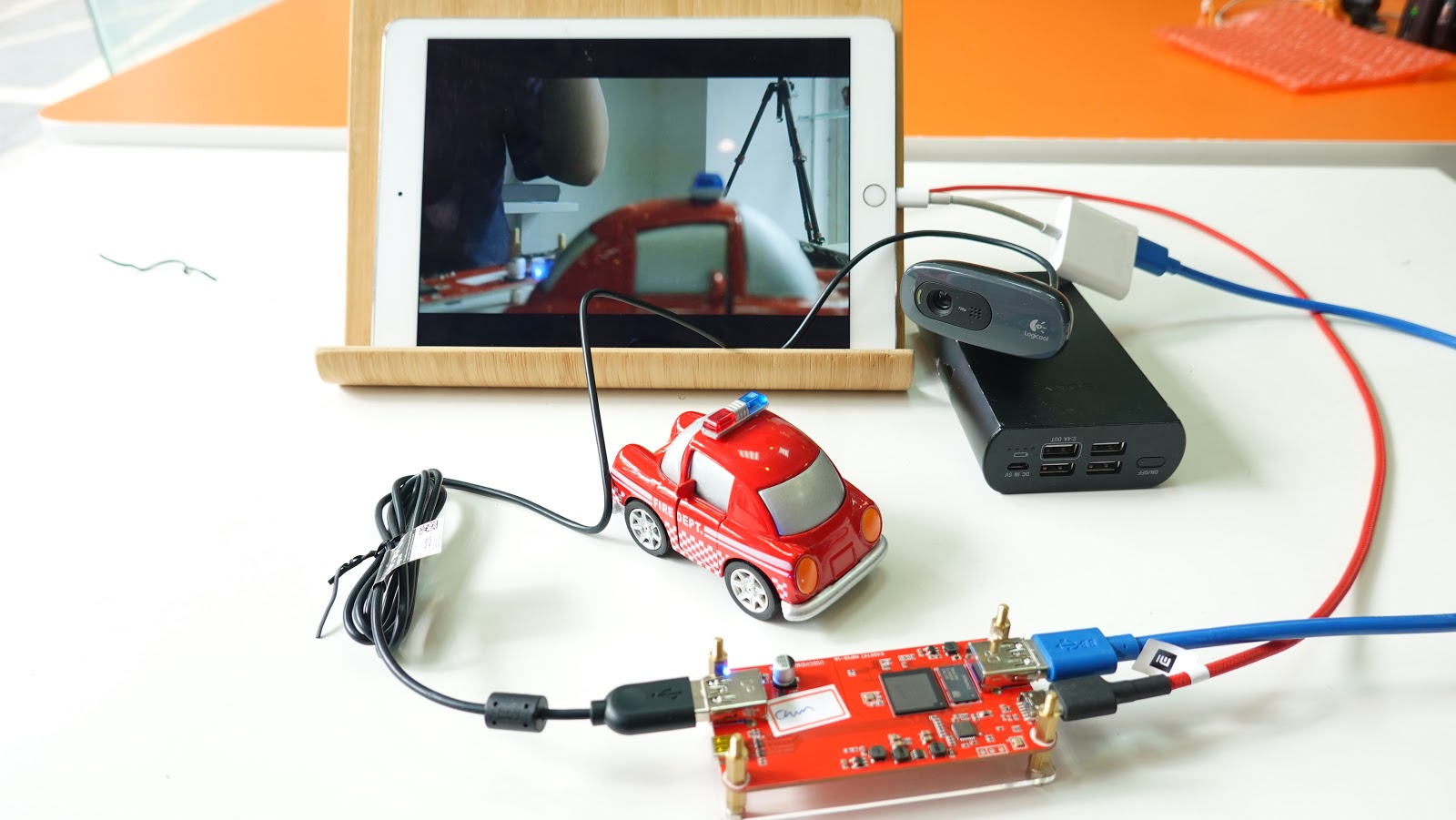

logitech webcam into hdmi
insta360 ONE R into hdmi outupt
appplication 2: turn usb-c output of atem mini pro into hdmi output
atem mini pro can mutliview and PGM view together
For lighting iOS, you need prepare " lightning to usb3 camera adapter"
For USB-C iPAD, you need prepare USB-C HUB or USB-C OTG CABLE
APP 1: UVC player
APP 2: medialink switcher (iOS14~iOS16 )
Function2: Turn your UVC webcam to iOS
advantage:
1. it just spend 11 sec to turn on hdmi output
2. you do not need USB Mouse
3.Support API (SDK). You can develop your own app
1. it just spend 11 sec to turn on hdmi output
2. you do not need USB Mouse
3.Support API (SDK). You can develop your own app
Turn USB UVC webcam to iOS
USB WEBCAM to iOS adapter is a bridge between iOS and UVC WEBCAM.
2.1 USB webcam can work with on a iPad iPhone. You also can develop your own app with external USB webcam
2.2. support API . you can develop your own APP .
2.3. function test app : uvcplayer ,
live streaming app : medialink switcher (beta version, audio have a little problem)
| WORK | Logitech c270, c310,c525, c92x, c93x, BCC950 , Brio 4k, c615 Lumina webcam |
| No WORK |
FEBON179PLUS UVC HDMI CAPTURE CARD J5create JVCU100 |
2020 New version UVC webcam to iOS adapter & hdmi output
This adapter have two main function
1. uvc webcam to hdmi
2. uvc webcam to iOS ( release API SDK)
① This adapter can connect USB2.0 formal webcam

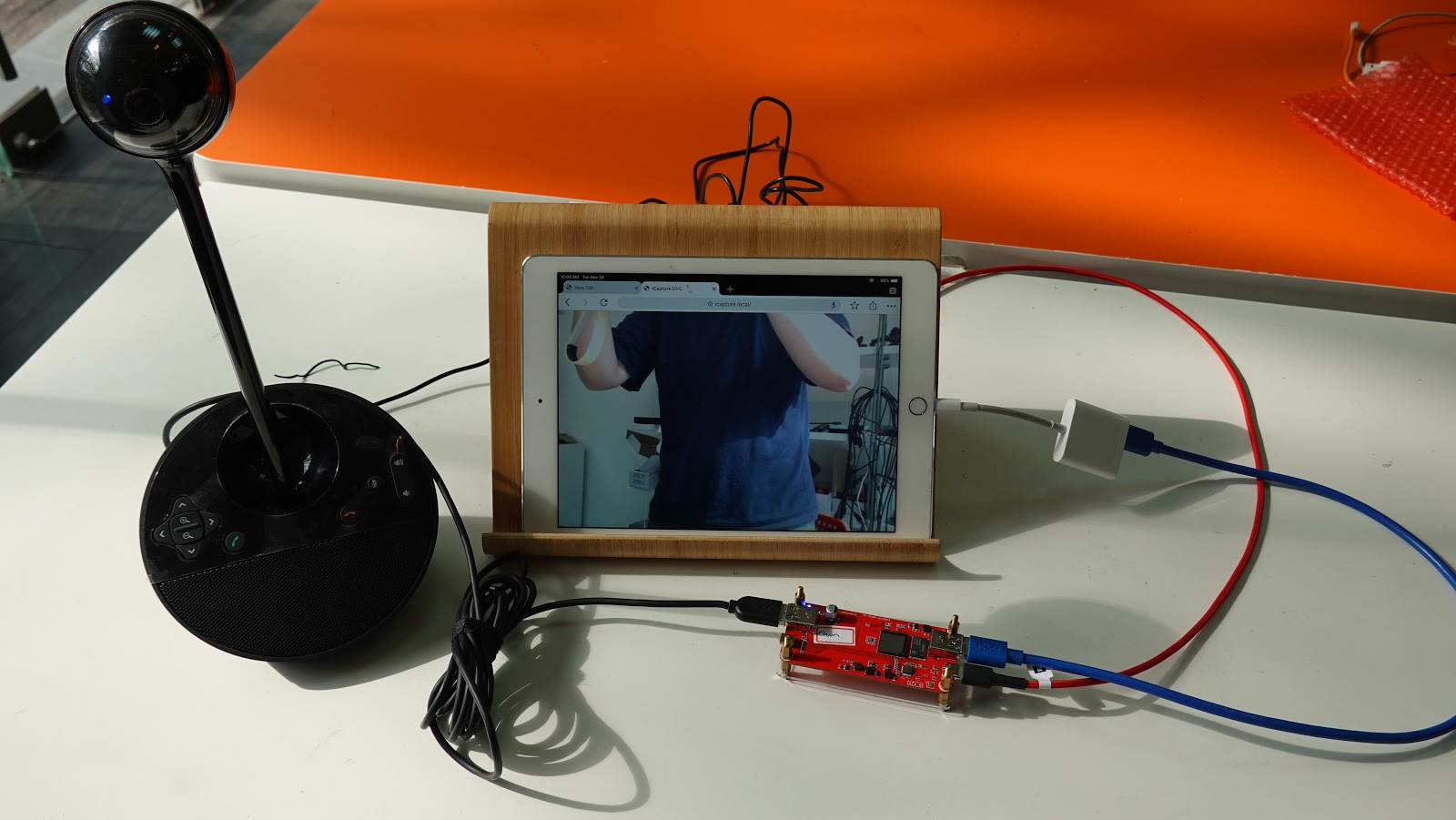

eg: MEVO START, Logitech C310, C525, C270, BCC950 , BRIO 4K HD, C920 Microsoft HD-3000 lifeCam,
IPEVO P2V, ZIGGI (old version), oitez DP-M06 microscope,
③ app1: medialink switcher (for 2021 new iPhone13 / iPad, it just simple baisc function )

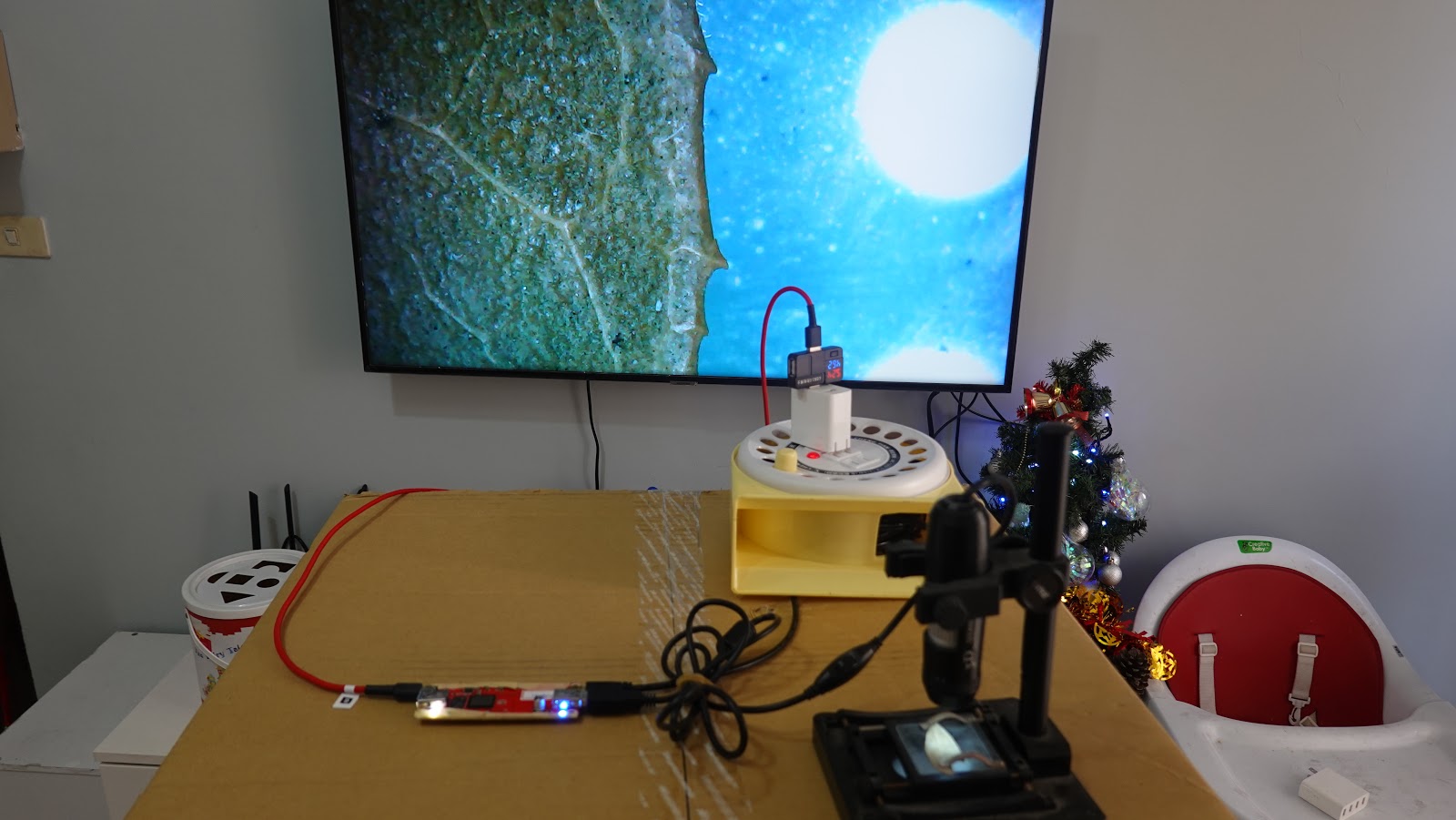

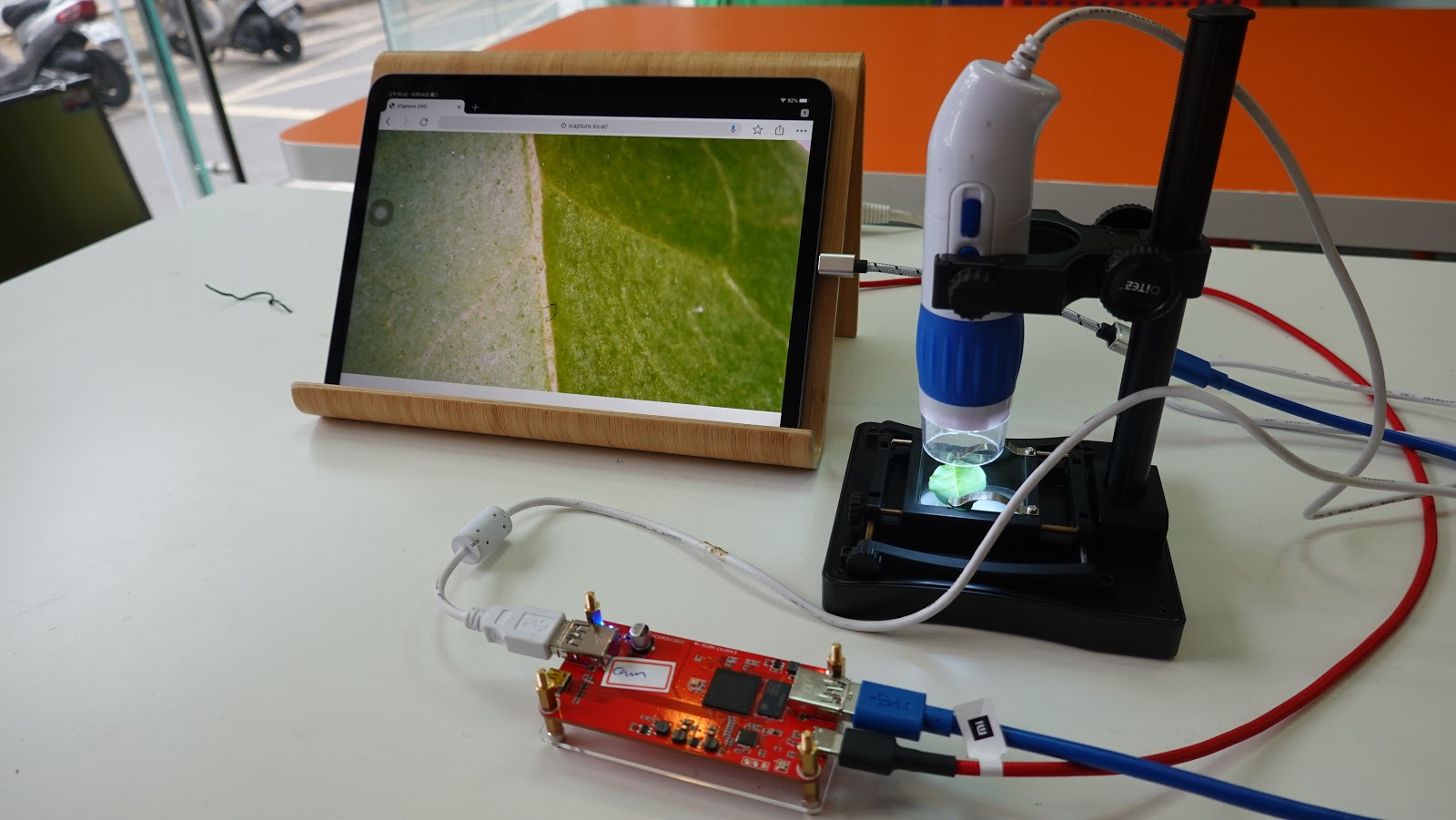

USB endoscope (cheap China made) , USB telescope (medical level), OSTEC skin microscope,
| WORK | Logitech c270, c310,c525, c92x, c93x, c615, bcc950 Logitech 4k pro magnetic webcam logitech streamcam logitech BCC950 , Brio 4k, IPEVO V4K Microsoft webcam MEVO START MEVO PLUS insta360 one R 4k camera USB-C OUTPUT OF ATEM MINI (real frame rate is about 20fps) |
| No TEST | AVer CAM340+ , AVer CAM520 PRO |
② This adapter CAN NOT connect USB3.0 mode uvc
you need check if your USB3.0 video device can be drop into USB2.0 mode
USB3.0 elgato Cam Link capture card CAN NOT drop into USB2.0
③ app1: medialink switcher (for 2021 new iPhone13 / iPad, it just simple baisc function )
app2: uvcplayer
It can not "directly" work on iOS app : iOS SKYPE, iOS zoom meeting, iOS google meet, iOS facebook , iOS youtube and etc
these app just can get internal iOS camera. it can not get external camera.
it just can "screen share" for iOS ZOOM MEETING, GOOGLE MEET , iOS facebook , iOS youtube and etc
⑤ UVC INPUT resolution and HDMI / iOS OUTPUT resolution is as below
UVC INPUT : Up to 1920x1080 mjpg
HDMI / UVC OUTPUT : up to 1920x1080
Turn ATEM MINI USB-C webcam output be hdmi output.
multi-view and PGM (Clean hdmi) together
Any major USB webcam be hdmi or iOS output.
USB WEBCAM as video source for video switcher use.
`
OBSBOT TINY can work with HDMI VIDEO SWITCHER (atem mini pro) and work on iPad
 |  |
if you need modify UVC or hdmi parameter, you just connect with PC usb port to control
UVC webcam color parameter | 2. UVC / HDMI resolution parameter |
 |  |
 |  |
MAC/iOS:
F/W upgrade : http://icapture.local:8888/fw/
setup parameter on chrome http://icapture.local/
VLC play: http://icapture.local/live.flv
Windows:
F/W upgrade : http://172.20.13.168:8888/fw/
setup parameter on chrome: http://172.20.13.168
VLC play : http://172.20.13.168/live.flv
F/W upgrade : http://icapture.local:8888/fw/
setup parameter on chrome http://icapture.local/
VLC play: http://icapture.local/live.flv
Windows:
F/W upgrade : http://172.20.13.168:8888/fw/
setup parameter on chrome: http://172.20.13.168
VLC play : http://172.20.13.168/live.flv
API (SDK ) tool:
We will release API /SDK for the secondary app development use.
Communication is HTML5 websocket http TCP video streaming.
you can use free APP to test
eg: iOS app VLC , iOS app rtsp viewer , iOS chrome and etc.
Depend on the open streaming, you can develop your own APP over our adapter.
eg: webRTC , live streaming app , and etc
The video latency is as belowRaw data tcp mode: video latency 110ms(Video Streaming with NODE.JS and html5)h.264 tcp mode: 230ms
API (SDK) document is embedded url interface
Swagger UI API Development Tools
webcam color parameter contorl on url interrface | stereaming control on Url interface |
