FEBON smartphone vertical full screen mirroring to TV adapter! smartphone as digital signage

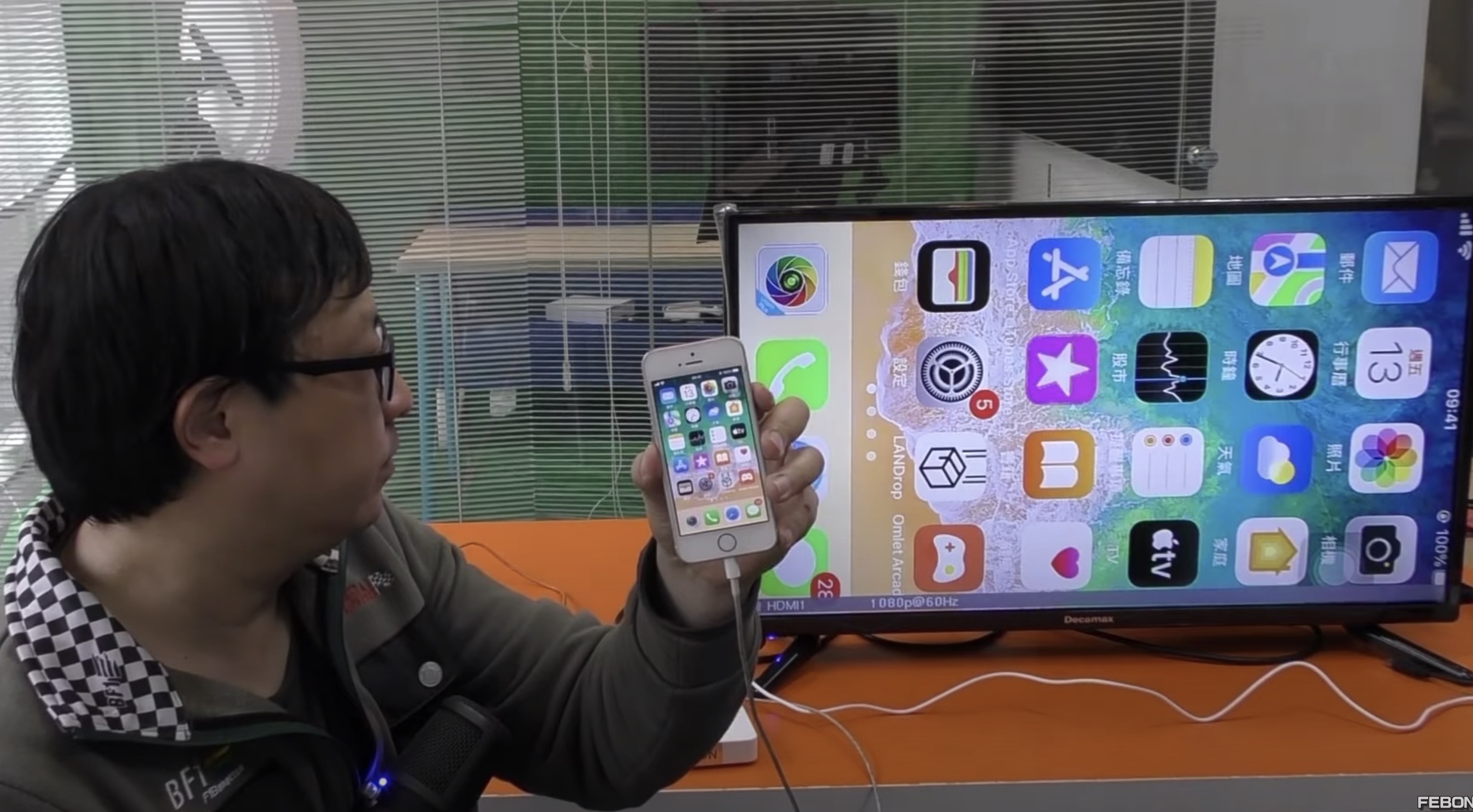

iPhone wireless /wire connection is vertical mirroring to TV

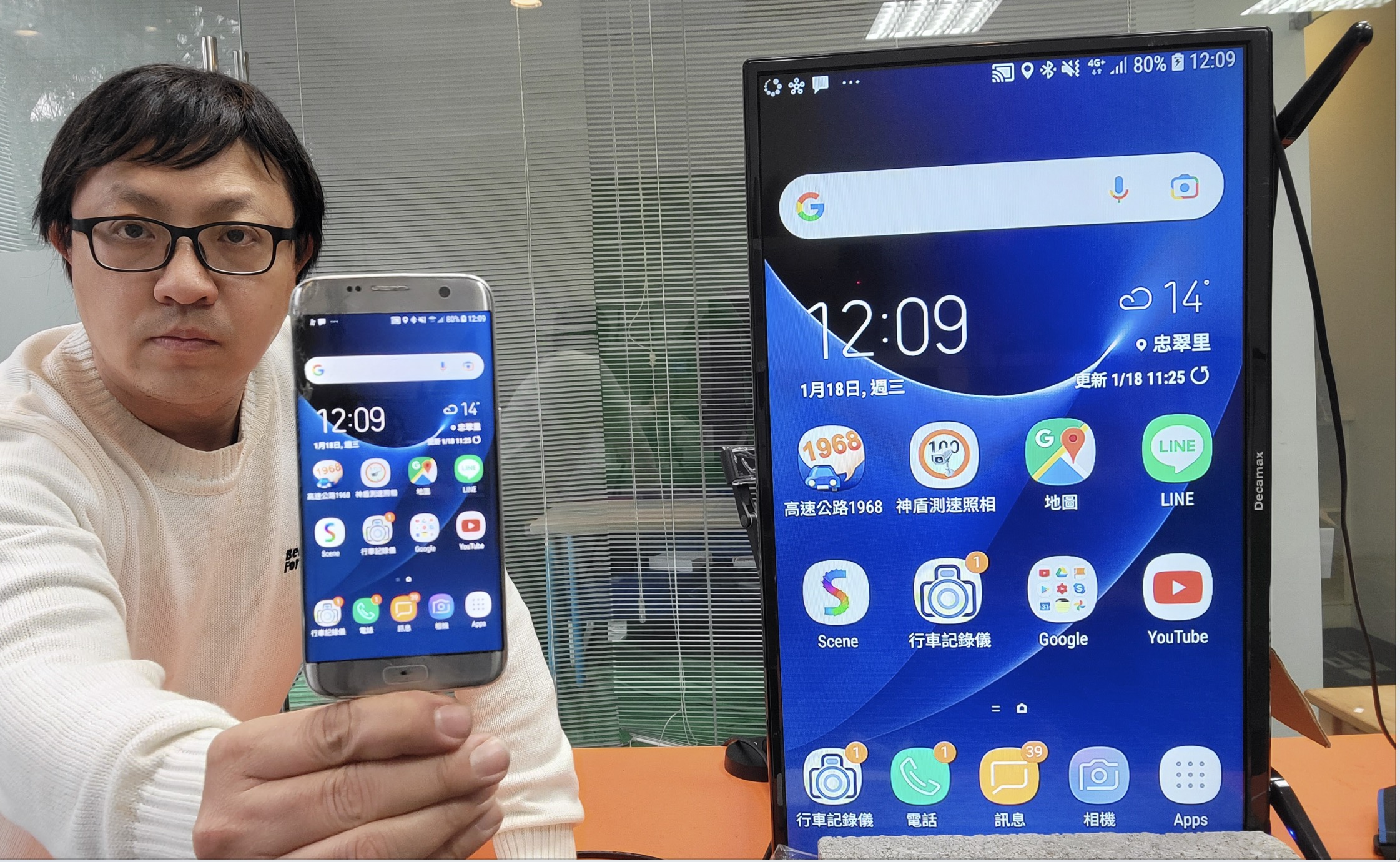

android phone wireless /wire connection is vertical mirroring to TV

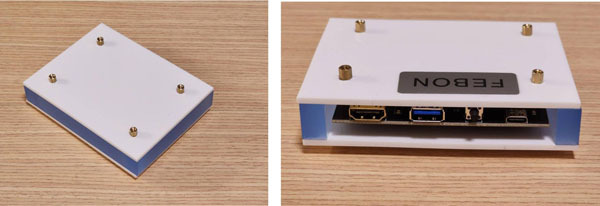

 FEBON smartphone full screen mirror adapter case

   It uses an acrylic case!  Three-sided walls: 10mm acrylic material.



Poduct PDF spec dowlonad link





use limitation:

1. DO NOT support Nextlix / disney+  & Youtube APP

   When you want to mirror Youtube to TV, please use browser "safari " to turn on Youtube



2.  wire connection

     support all android phone: above android 6 system

      iOS & iPadOS : above iPodOS12 ~18

      iPhone: iOS12~ iOS18

    when use andorid phone with wire connection , please download app "MiraPlug" and turn on bluetooth.

      https://www.youtube.com/watch?v=kh_ircki0k8

    For android use, you also need bluetooth to connect it,  bluetooth is for audio mirror on tv.



 3. Wireless connection:

    support  ① airplay and ② Miracast

     ①  iOS or iPadOS (airplay) : above iOS12 ~iOS17

     ②  android phone: Not all of android phone support Miracast

           eg: google pixel phone CAN NOT support Miracast

     Please confirm whether the mobile phone has the ability of wireless projection with smart tv (LG / Samsung TV)

     If your phone can mirror to samsung / LG TV , it means your phone support Miracast

      How to test ?     https://youtu.be/efI-RPf9AiM?t=214

──

--

4.  When you want to mirror Youtube to TV, please use browser "safari " to turn on Youtube

     ( It CAN NOT mirror Netflix , disney and some copyright app. it will show black video)

    If you need play a video file on iPhone, please use this app as below link

   iOS app: 簡單播放

  https://apps.apple.com/id/app/简单播放器-强大好用的学习播放器/id1469851328?l=id

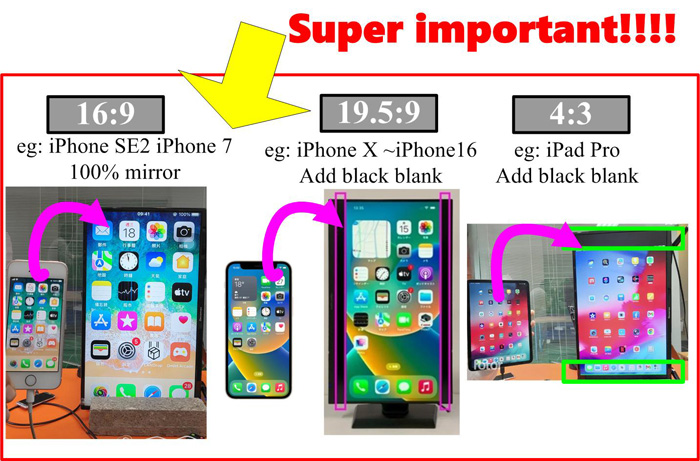

5.  mirror ratio

Not all of smartphone is standard 16:9 monitor.  the result of mirroring to tv is as below

Mobile phone screen ratios are divided into standard 16:9, 20:9 and 4:3, etc.

Different mobile phone ratios will result in different projections to the TV.



if you need let iphone mirror to tv be full screen , you need use 16:9 iphone

eg:  iPhone  SE 2 , iPhone SE ...













  FEBON smartphone full screen mirror adapter

  The case is not the white case shown in the video demo! It uses an acrylic case!

  This is the engineering development stage of the case!

  The product's function is not affected!

  If you are concerned about the appearance of the case, please do not place an order.

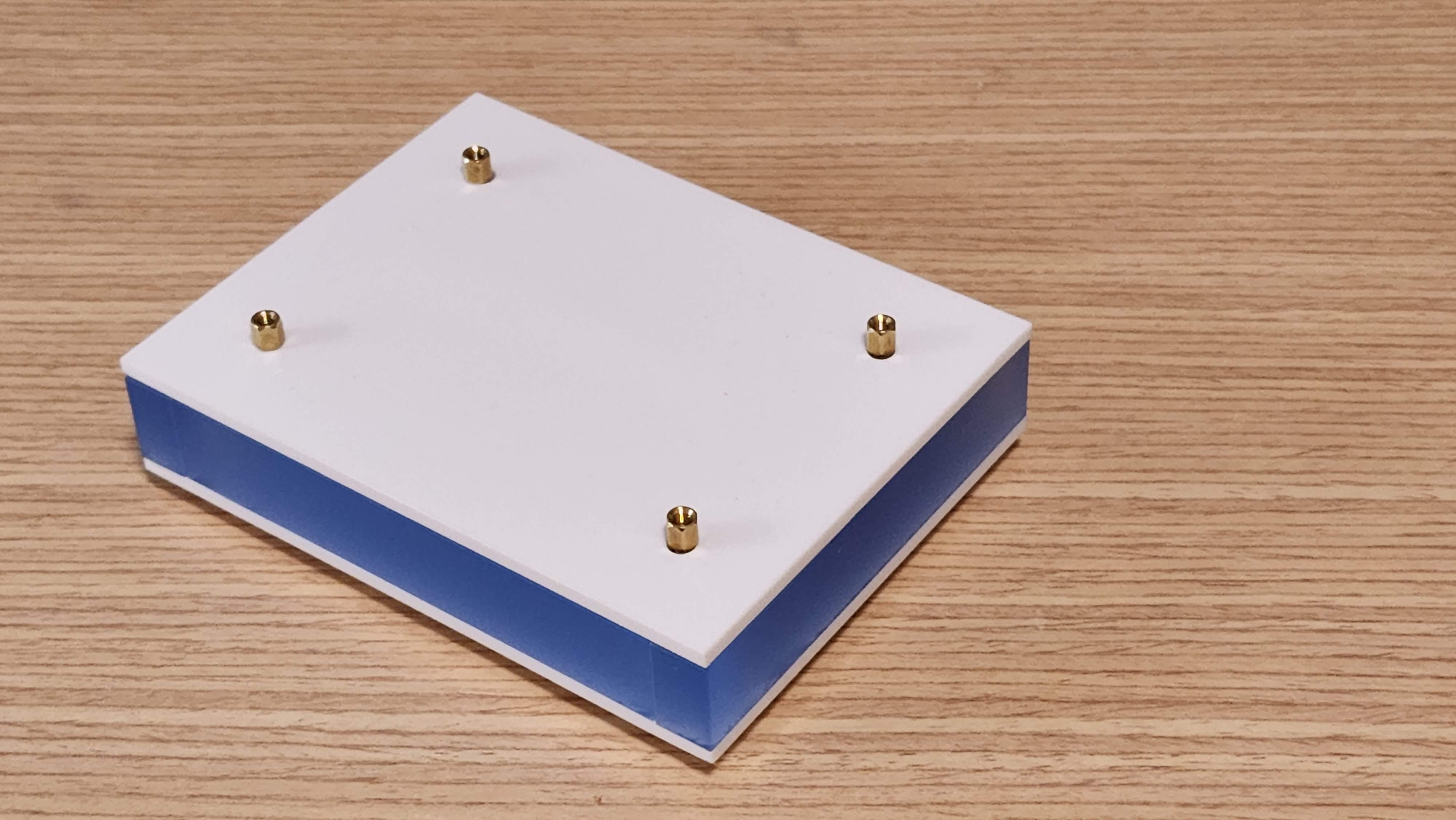

  Top and bottom cover: white acrylic material.

  Three-sided walls: 10mm acrylic material.

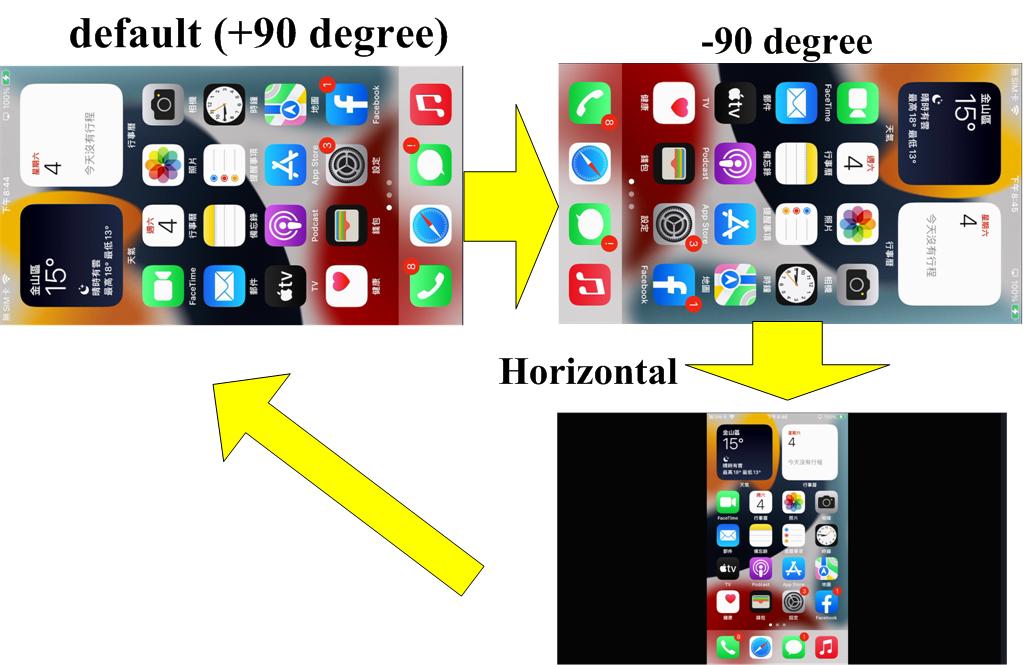

  hardware key to contorl rotation

  hotkey control rotation!







 Wire connection



     ① For iOS / iPadOS use, wire connection DO NOT install any app.

    How to use ?

            DEMO:

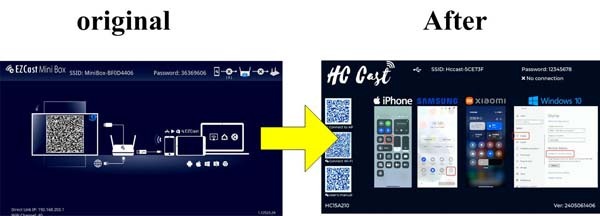

  ②  For  andorid phone with wire connection , please download app "HCCast" and turn on Bluetooth.

           How to use ?



 Wireless connection

 ①  iOS or iPadOS (airplay) : above iOS12 ~iOS17.02  & iOS18 beta

          How to use ??





   ②  android phone: Not all of android phone support Miracast

           eg: google pixel phone CAN NOT support Miracast

     Please confirm whether the mobile phone has the ability of wireless projection with smart tv (LG / Samsung TV)

     If your phone can mirror to samsung / LG TV , it means your phone support Miracast

      How to USE??





  When projecting phone images onto TV, there are two major    problems:

  1.Not all phones have HDMI output capability.

    iPhones and iPads guarantee HDMI output, but not all Android phones have HDMI output.     For example, even when connected to a USB-C hub, low-end Xiaomi phones still cannot   output HDMI.

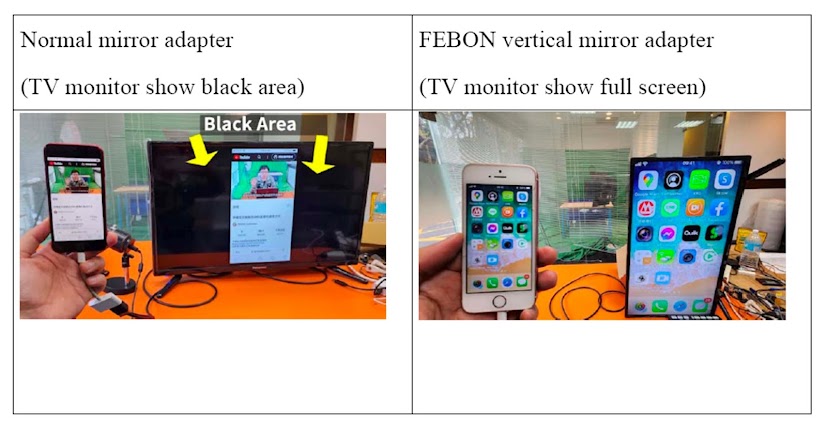

  2. Vertical projection from a mobile phone will result in left and right black border issues.

  Although the mobile phone is projected vertically, the TV will display it horizontally in a 16:9   HDMI video format, with black borders added on the left and right sides! If you use a regular   Apple Lightning to AV converter:



  When using FEBON smartphone full screen mirror adapter to project a vertical mobile phone   screen onto a television, it will be displayed in full screen on the TV.

  How to use?

  step1: smartphone connect FEBON full screen vertical mirror adapter

  1.iPhone: lightning cable

  2.USB-C android phone: USB-C cable

  3.micro USB android phone: micro USB cbale

  note:

  for iOS / iPadOS use, just connect cable

  for android system , you need dowload app and use bluetooth connect audio

  android demo:

   https://www.youtube.com/watch?v=kh_ircki0k8



    step2: connect to your tv

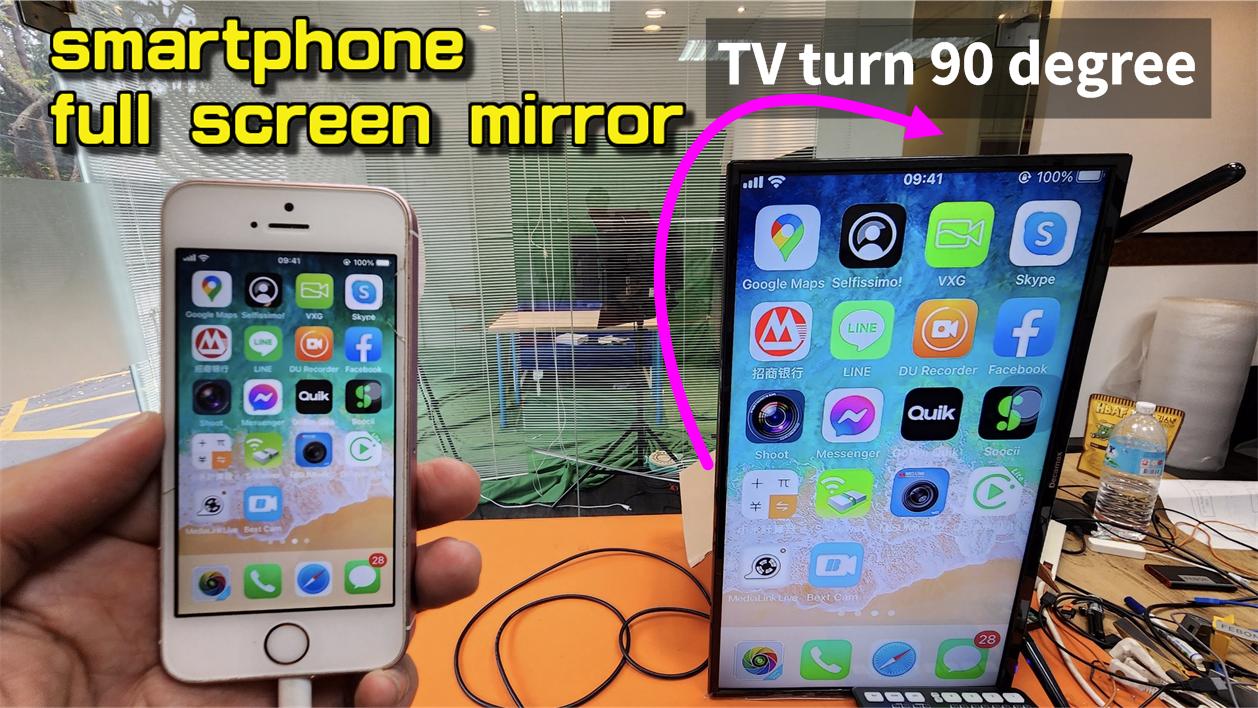

   step3: tv turn 90 degree





  APPLICATION

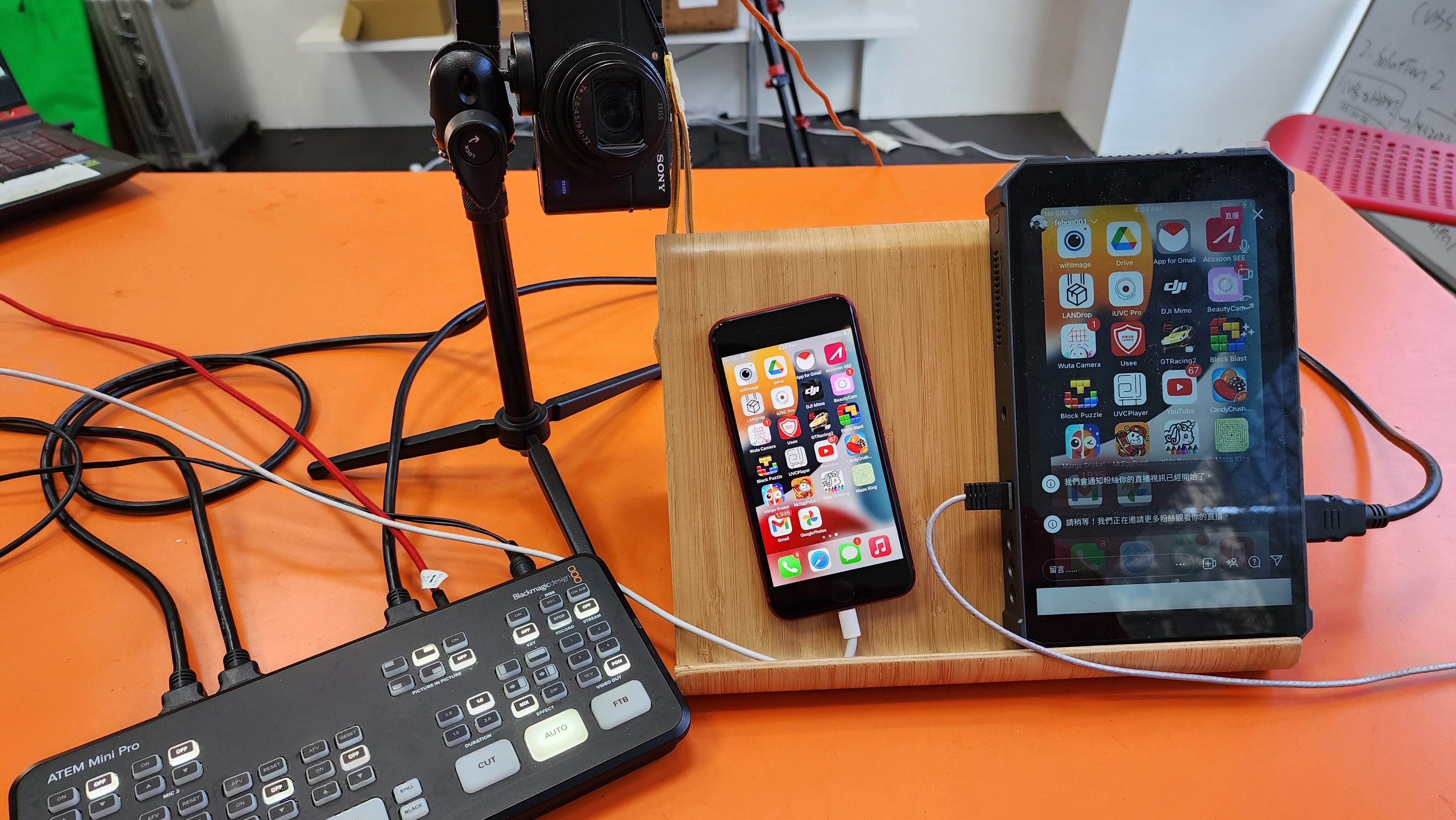

  1. connect to atem mini pro

   video demo: https://youtu.be/bRk1YEyd_6M

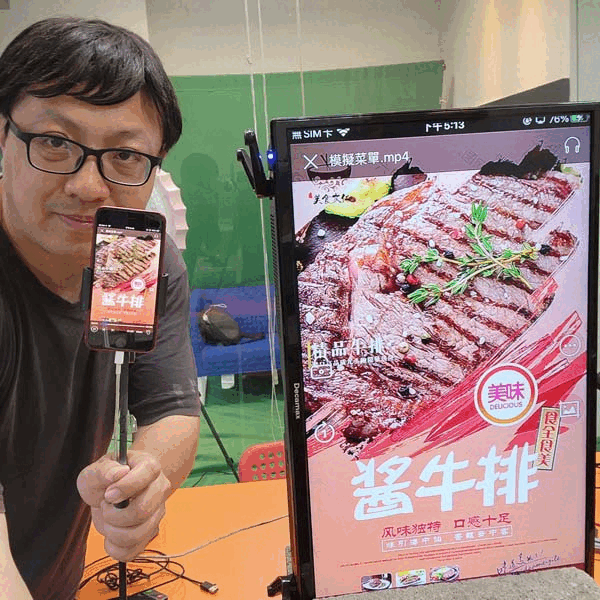

  2. Digital signage" or "Advertising display

iPhone as digital sinage.
