USB3.0 FEBON179 PLUS 4K UVC HDMI capture card ( USB bulk mode )

1. USB UVC 4K outpu

2. USB UVC  1080p output

 Shipping Pacakge

1. FEBON179 4K PLUS hdmi capture card ( with black case)

2. USB3.0 USB C cable x 1

3. USB2.0 cable x1

Before you buy, please see the use limatation as below link

1. uvc output video latency is about 100 ms (0.1 sec)

Video latency is 100ms. if want to connect  nintendo switch, add external TV

   For camera / camcorder use, it is fine.

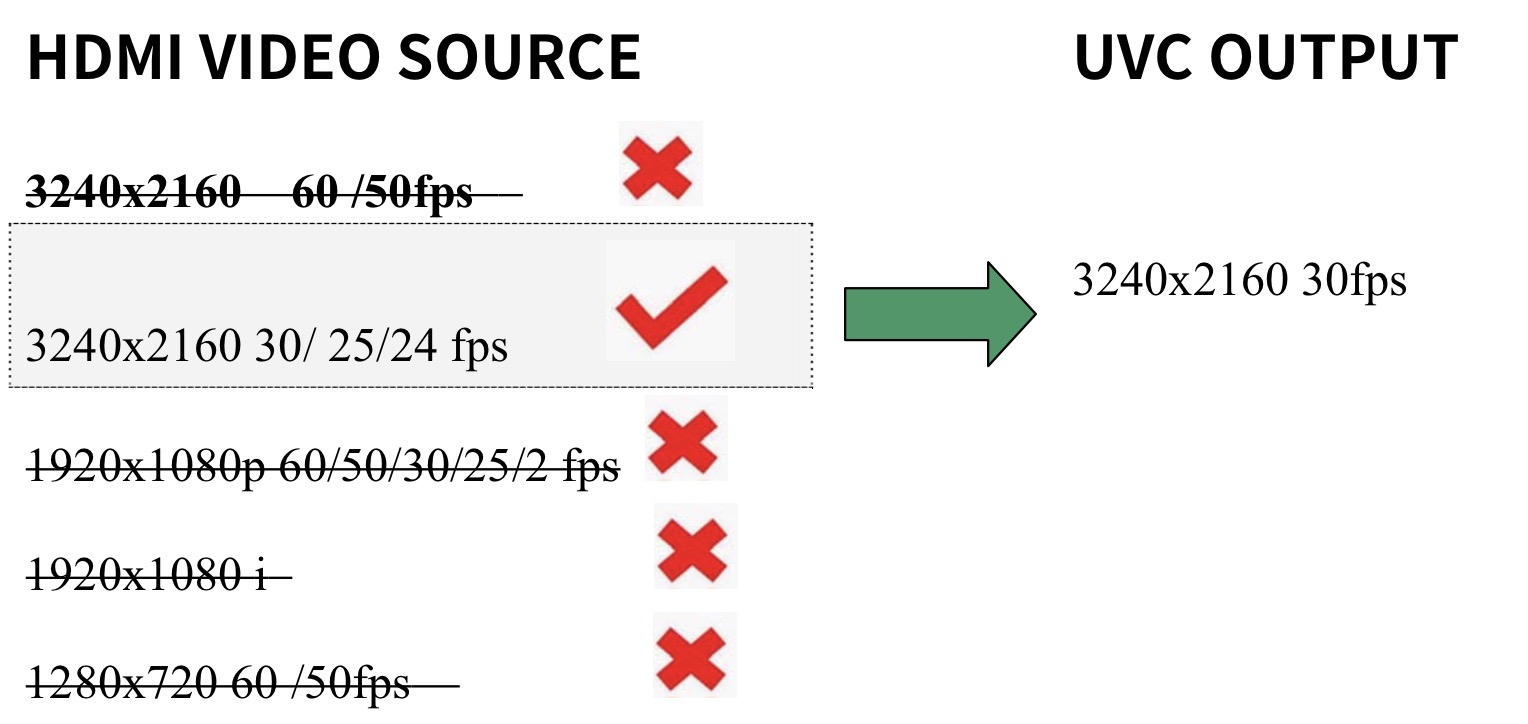

2.  HDMI reoslution input & UVC output table

 2.1 When UVC 4K 30fps be into PC,  HDMI source must be 4K HDMI

 2.2 When UVC 1080p be input PC, all kind of hdmi source are ok

3. . HDMI format comaptible table

  we test many DSLR and tablet / pc of hdmi output

  Almost all of them are work.

  Before you buy, please test your equiment if it real have live video output.

   use your TV to test as this video https://youtu.be/IyR9apLj6Is

4. UVC output is just YUV /NV12/ RGB ( no compression).  it do not have mjpg.

    it is not good to connect with my company adapter as below

    USB webcam to iOS / HDMI adapter

    USB webcam to lightning adapter

    USB webcam wifi router station

    USB WEBCAM SPLITTER

Host (windows / mac / liunux) compatible

 1 . PC HOST that is with USB3.0 port

   -  WINDOWS10

   - MAC  (10.14 above)

       eg: MAC M1 CPU +macOS Monterey 12.0.1

   - USB3.0 raspberry pi (Linux Ubuntu 14.04)

 2. LINUX embed system & android

  need USB3.0 port.

  -  raspberry pi

   - android phone that is with USB3.0 port

   note: almost of qualcomm cpu can let work

Product advantage

1. USB BULK mode!!  at the same time, connect 3 ea of FEBON179 PLUS on PC

  VIDEO DEMO: https://youtu.be/WKTgILfGvok?t=724

  note：use 1920x1080 as the test

2. up to 4K 30 fps be into PC.

   note: hdmi video source must be 4k 30fps

3. accept 4k blueray dvd or iPad or netflix

 4. add a HDMI OUTPUT. It is for nintendo switch application

5. add a external 3.5mm MIC input.

  when you want to let iPhone / iPad as a  camera, it do not have audio mic

   you can add this external 3.5mm mic with capture  card

6. We will provide the clean hdmi app that can let your smart phone as clean hdmi camera

  VIDEO DEMO: https://youtu.be/WKTgILfGvok?t=589

   iPhone /iPad :  2 app can be used

   android:  1 app can be used

7. Provide professional  advance no compression format

   NV12:  (YUV420 ):  target high resolution 4k 30fps or connect multi febon179 plus card on pc

   YUV ( YUV422)：target for camera application

   RGB  : target to capture the PC monitor small words.

    VIDEO DEMO: https://youtu.be/WKTgILfGvok?t=600
