usb webcam to lightning cable with case (peertalk)
support iOS12 ~iOS 18 beta version
If Payment error, you can try this purchase link (PayPal base)
https://www.febon.net/products/usb-uvc-webcam-to-lightning
外部USBカメラをiPhone、iPadに接続するアダプターです。
このアダプターは、UVCカメラをライトニングケーブルで、iOSに接続できます。
例 USBカメラUSB接続と電源入力（5V2A) ⇒ UVCライトニングボード ⇒ライトニングケーブル(ipad、iphone)
※ライトニングケーブルの他USBType-Cモデルも対応しています。
外部UVCwebカメラを、ライトニングケーブル接続でiPhone iPadに表示できます。
An adapter that connects an external USB camera to an iPhone or iPad.
This adapter allows you to connect your UVC camera to iOS with a lightning cable.
Example: USB camera USB connection and power input (5V2A) ⇒ UVC lightning board ⇒ lightning cable (ipad, iphone)
* USB Type-C models are also supported in addition to lightning cables.
You can view the external UVC web camera on your iPhone iPad with a lightning cable connection.
US$115.1
Availability: In Stock
support iOS12 ~iOS17 and iOS 18 beta
Shipping package:
1. Y CABLE
2. USB webcam to lightning adapter
If you need PCBA only, you can buy this link ( cheap )
This hardware DO NOT support API SDK.
if you need develop your own app, you need buy this one that can support API SDK as below link
external usb webcam to iPhone iPad adapter
This adapter can let uvc camera become wire lighting and can connect with iOS
external uvc webcam can display on iPhone iPad by wire connecting!!!!
USB UVC webcam to lightning adapter CAN work on iOS10 / iOS11 / iOS12 / iOS13 / iOS14 / iOS15 / iOS 16 / iOS 17 /iOS18 beta
USE notice!!!
1. it CAN NOT use and charge power at the same time
2. It will show error message. But you still can use
3. video only , no audio
4 It just can work on our app. it CAN NOT "directly" work on video conference app
eg: can not work on facebook /skype /facetime / zoom and etc
-
-
you can use " screen share" . iOS ZOOM /SKYPE / Google meet have screen share function.
by use this method, external webcam can share video for zoom skype google meet and etc.
you need check your app if it have "screen share " function.
5. We DO NOT release SDK (software design kit) or API now!
if you need develop your own app, you need buy this one that can support api sdk
6. Not all of USB2.0 webcam can work on this adpater
This is a portable product.
| WORK for 100% sure | Logitech c270, c310,c525, c92x, c93x, c615 , brio 4k logitech 4k pro magnetic webcam streamcam, BCC950 , rally PTZ camera , ptz pro 2 IPEVO V4K , IPEVO DO-CAM IPEVO V4K PRO OBSBOT TINY OBSBOT TAIL INSTA360 ONE R 4K camera Microsoft webcam NEVO START MEVO PLUS ( My adapter support MEO PLUS after 10/12/2020 purchase) AVer CAM340+ , AVer CAM520 PRO j5create jvcu100 |
| No WORK | 1.FEBON179 PLUS UVC hdmi CAPTURE CARD 2. USB-C webcam OUTPUT OF ATEM MINI (pro) (CAN NOT turn USB-C of atem mini pro / iso into HDMI, PGM hdmi) use its hdmi output port 3. ELGATO CAM LINK |

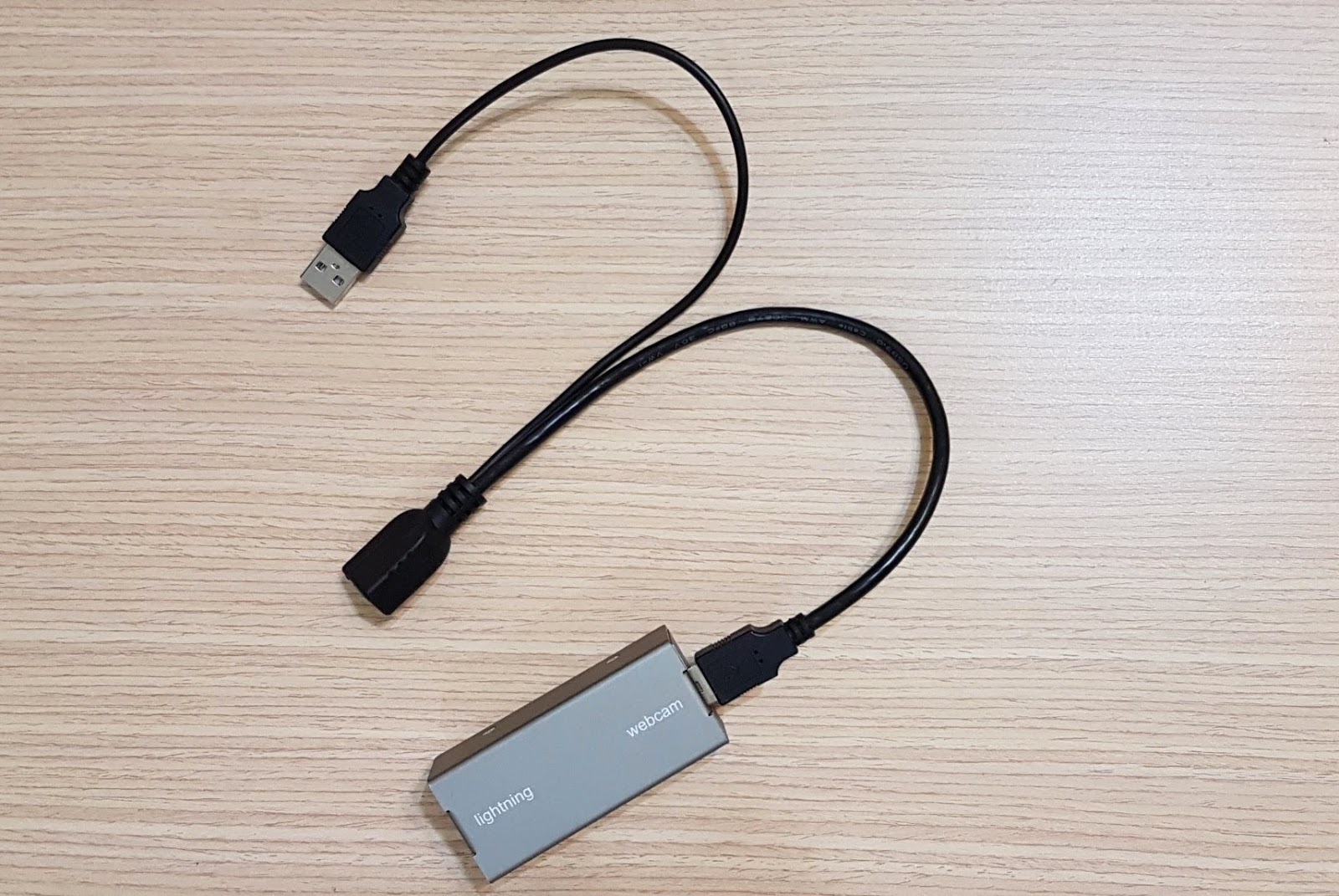

package:
1. webcam to lightning converter box
2. USB Type A to Type A with charge line (USB Y cable)
Before shipping, i will connect it and inform you which one is power line and which one is for usb cam
iOS compatible
1. iOS 12 ~ iOS18 beta
2. iPhone 5C up
3. iPad Pro (USB-C version)
You need prepare as below
1. apple lightning cable (Original Equipment Manufacturer by APPLE)
2. iphone/ iPad DV 5V power adapter
work function
1.video only
2. no audio
APP: "wifiImage"
although its name includes "wifi", it real use wire lighting connect
1. live preview
2. still picture
3. video record
FEBON UVC camera to lightning adapter just work with APP " wifi image"
it CAN NOT work on "facetime, skype and etc"
How to do ?
1. FEBON uvc webcam to wire lightning converter box
2. DC 5V adapter
3. iPhone charge cable
4. uvc usb webcam
1. FEBON uvc webcam to wire lightning converter box
2. DC 5V adapter
3. iPhone charge cable
4. uvc usb webcam
step1: plug the USB Y cable with the board
step2: connect usb webcam and lighting as below
step2: connect usb webcam and lighting as below

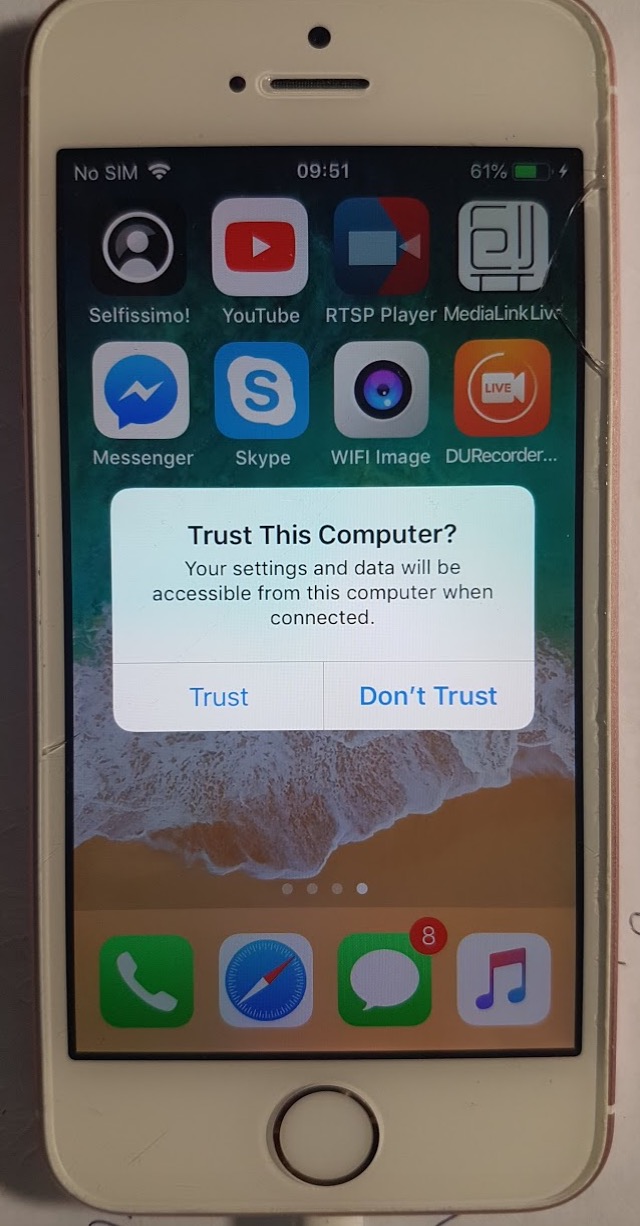

step3: you need accept (trust)
step4:

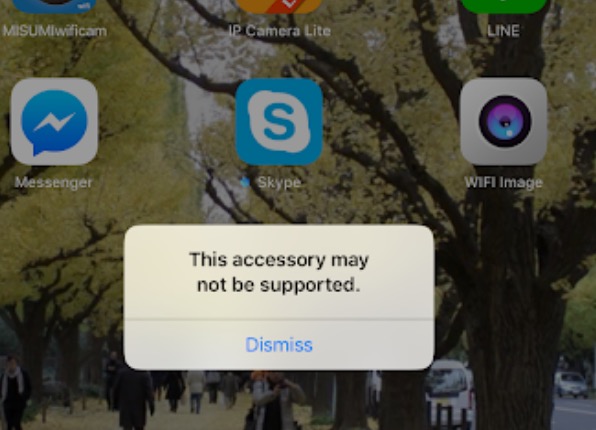

some machine can not charge and use at the same time
and will show the error message
But, it still can use!!
and will show the error message
But, it still can use!!
you can let usb uvc camera connect with iPhone iPad by wire lightning connector
eg:
USB logitech c310 c910 webcam become wire lightning camera
USB microscope become wire lightning microscope
USB IPEVO document camera become wire lightning
USB snake camera (endoscope ) become wire lightning
communicate technology: peertalk
1. We DO NOT release SDK ( software design kit)
2. You can reference the below link about Peertalk desing
3. iOS (iPhone iPad) kit is as device.
UVC webcam to lighting adapter is as host
this idea is that iphone connect with PC and use iTunes to transmit into iOS.
uvc webcam to lightning adapter is like a "small computer".
This small computer is just a Linux base
4. Who also use "Peertalk"
iOS app: duet display
this app can let iPad as a second monitor for PC windows MAC
WINDOWS / MAC OS be mirror to iPad

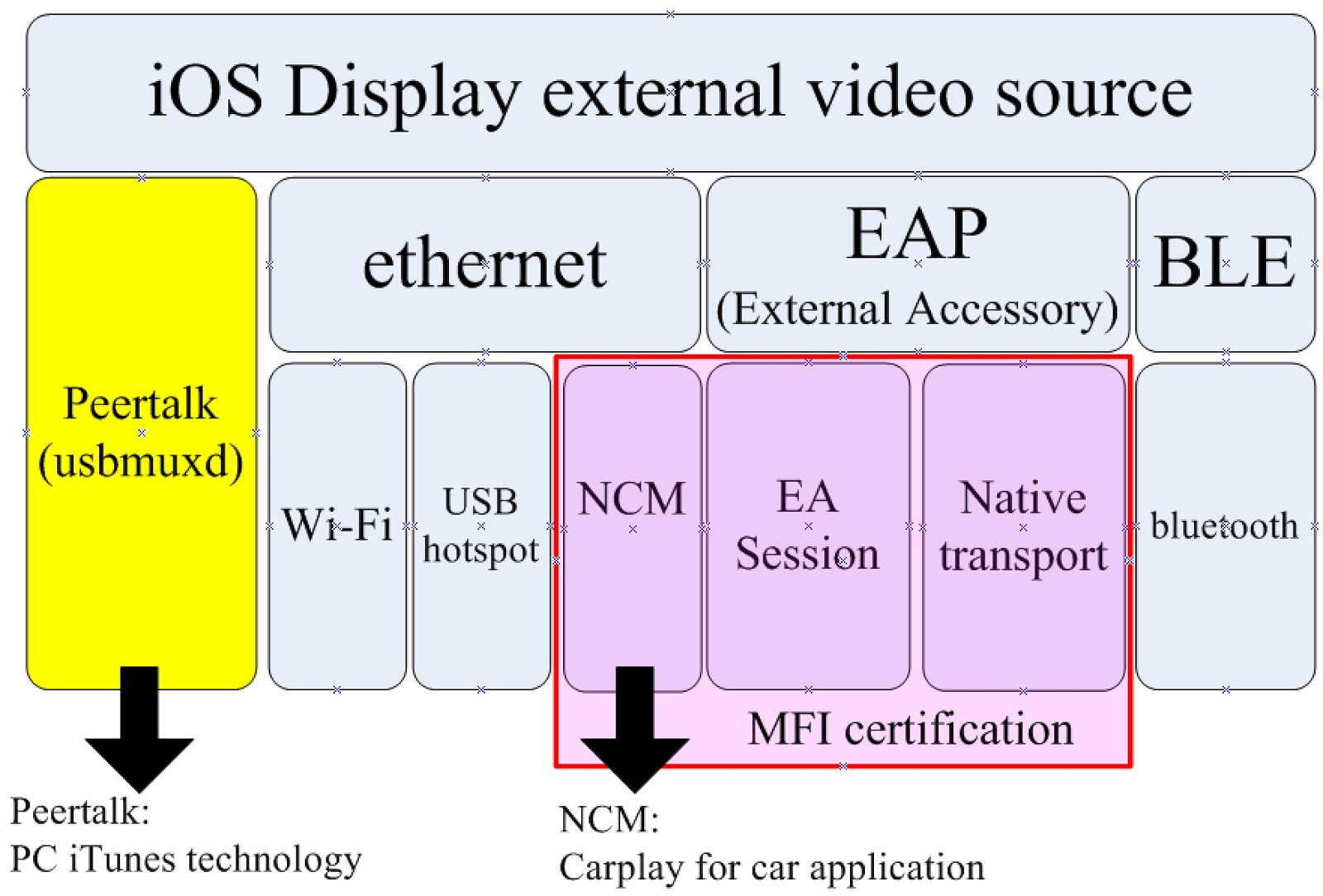

5. NO MFI issue
MFI : NCM, EA session, Native transport
No MFI : wifi , usb hotspot, peertalk
APPLICATION
1. uvc usb webcam work on iPad Pro (Type C version)
2. logitech c525 usb camera display on iPad
3.USB microscope display on iPad
4.USB IPEVO document camera display on iPad
5.USB snake camera (endoscope ) display on iPad
-
-
-
-
-SDI video display on iPad
SDI to lightning converter= FEBON189 UVC HDMI grabber card + uvc webcam to lightning
-
-
-CVBS display on iPad
CVBS to lightning converter= FEBON264 UVC CVBS grabber card + uvc webcam to lightning
