HDMI-UVC Dual Mode converter！ （smartphone veridical mirror version)

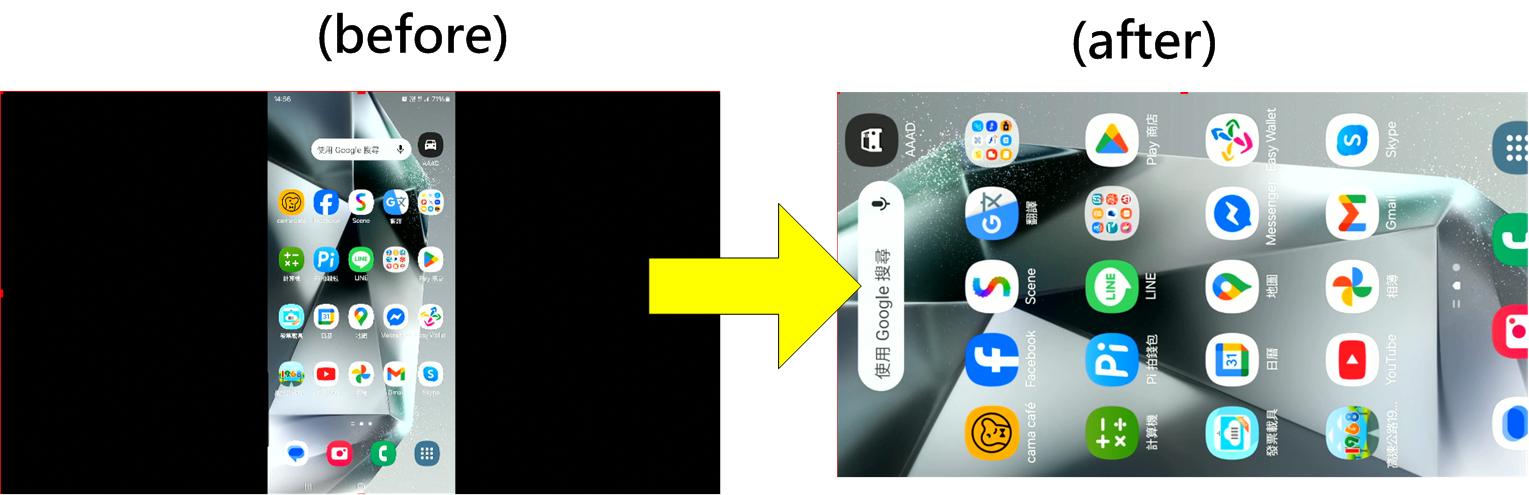

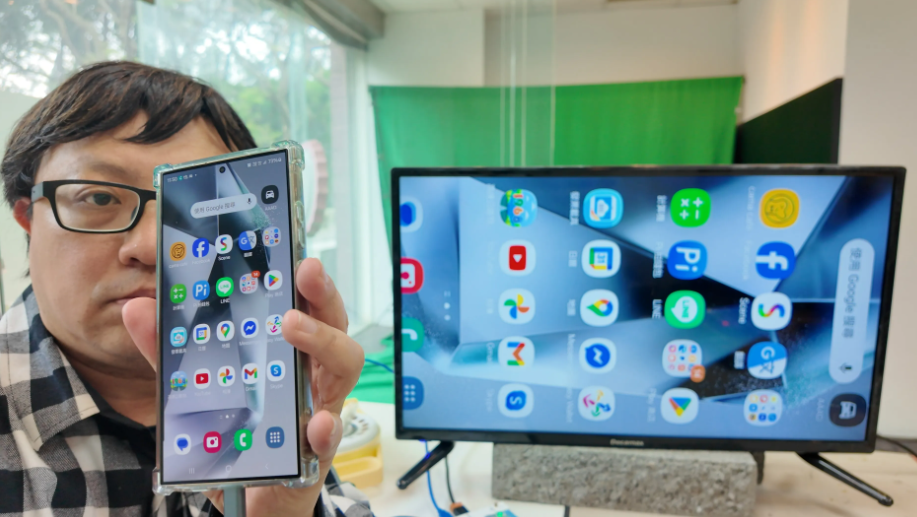

smaprtphone screen ratios now exceed 20:9, becoming increasingly elongated. So how can we fully project them onto a standard 16:9 TV? There are three methods:

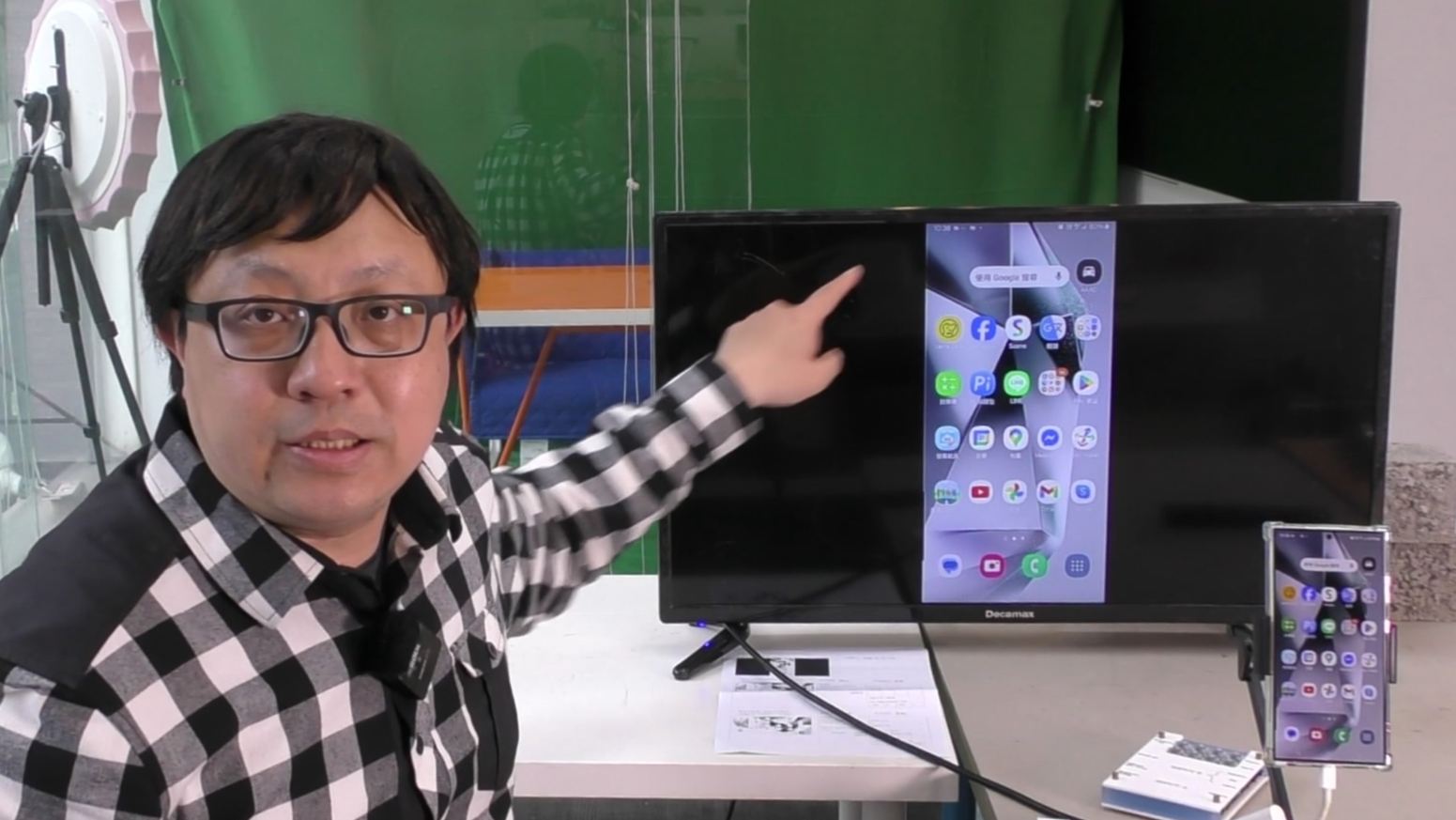

1. original mode

   mirroring a 20:9 mobile screen onto a 16:9 TV:

• No change in viewing angle
• No change in text proportions
• Black bars added on the sides

   If you’re okay with this projection method (with slight black blank), please purchase from this link.

   https://livestream.qdm.tw/vertical-full-screen-mirror

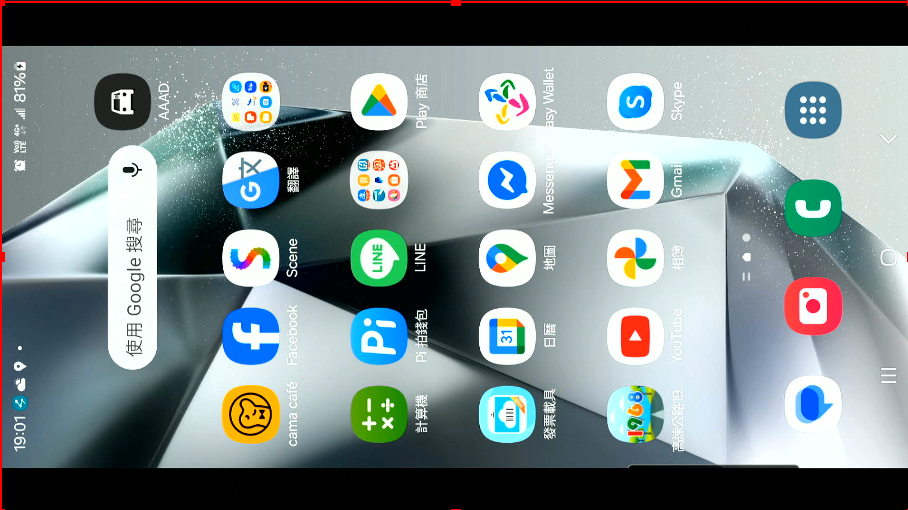

2. crop mode (this product can solve)

Crop the video while maintaining the correct proportions (text won’t be stretched or compressed), but some viewing angles will be sacrificed.

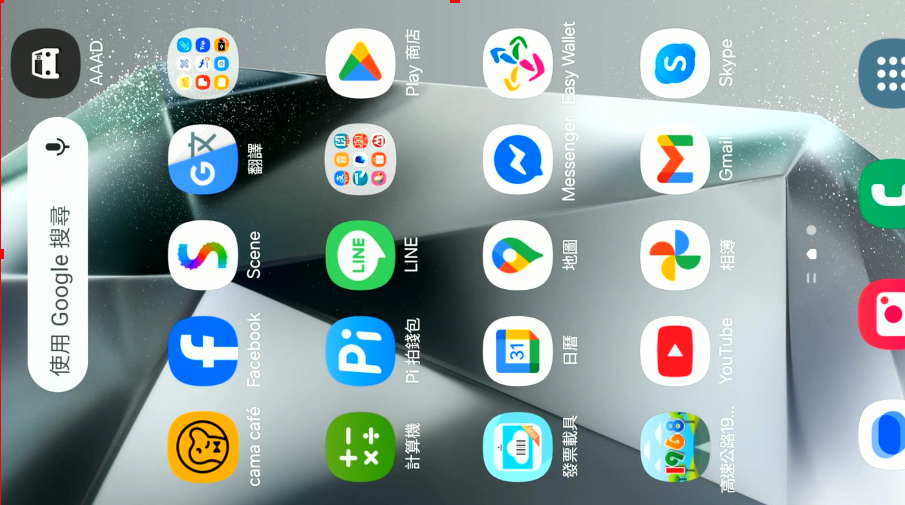

3. fill mode (this product can solve)

Expand and stretch the video, causing text distortion but without sacrificing the viewing angle.

Shipping package

1.  UVC-HDMI dual mode converter （smartphone veridical mirror version) x 1

2. USB-A  cable x 2

3. USB-C cable x 1

4. DC 5V adapter x 1

(Does not include a smartphone usb-c to hdmi adapter or USB-C hub; please prepare your own.)

Important Notice

 1.This UVC-HDMI dual-mode converter (smartphone mirroring version) has different functions from the product in the link below.

This product may not support the features of the product below.

https://livestream.qdm.tw/uvc-hdmi-dual-converter

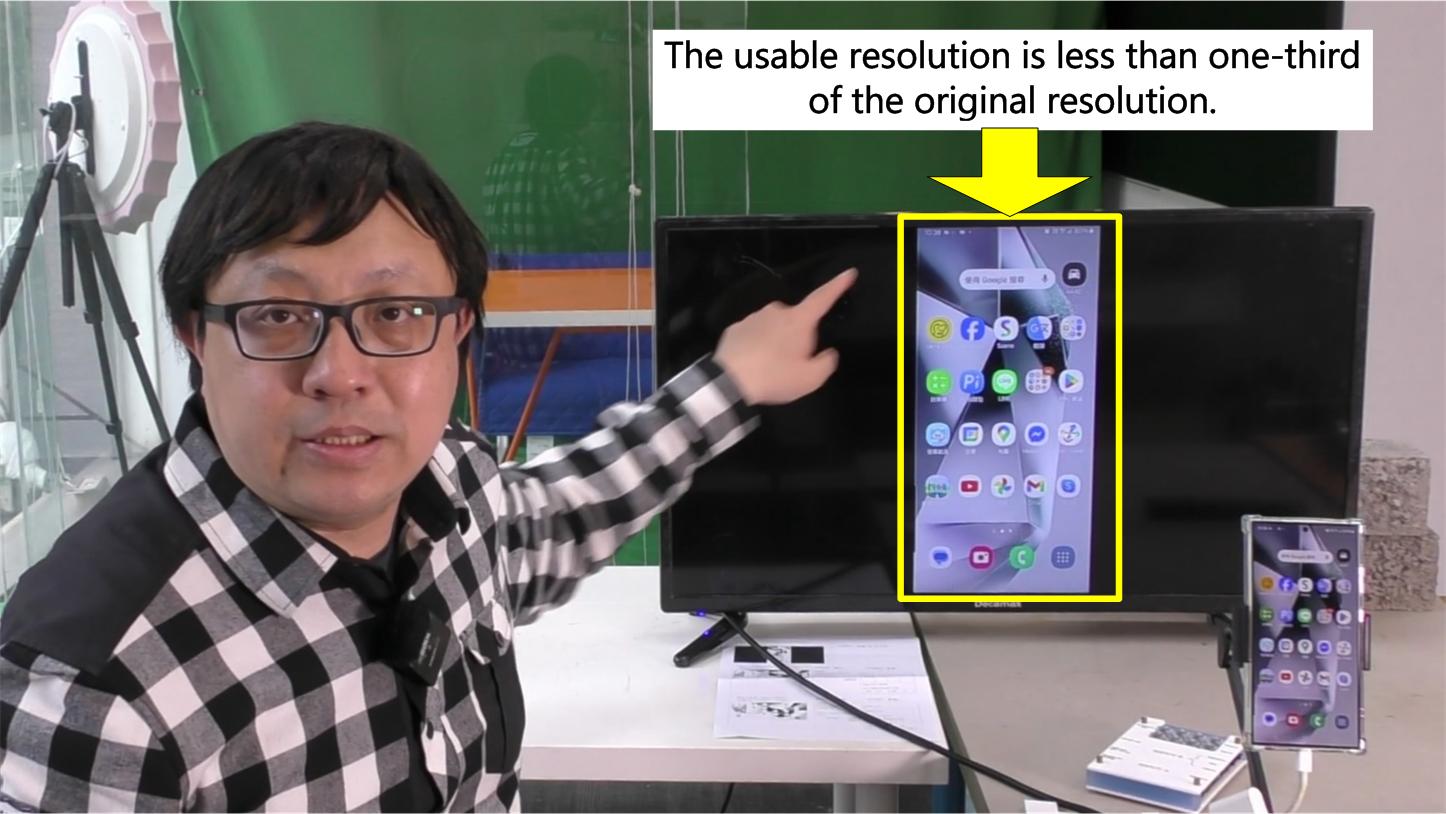

2. If using a traditional USB-C hub as the video source for smartphone mirroring,

converting to portrait mode with this converter will result in poor video quality,

because the actual displayed image is less than one-third of the original screen.

3. The best option is to use a smartphone vertical mode mirror adapter as the video source.

https://livestream.qdm.tw/vertical-full-screen-mirror

smartphone vertical mode mirror adapter has already output a full-screen portrait mode video, with less than 20% being black blanck area.

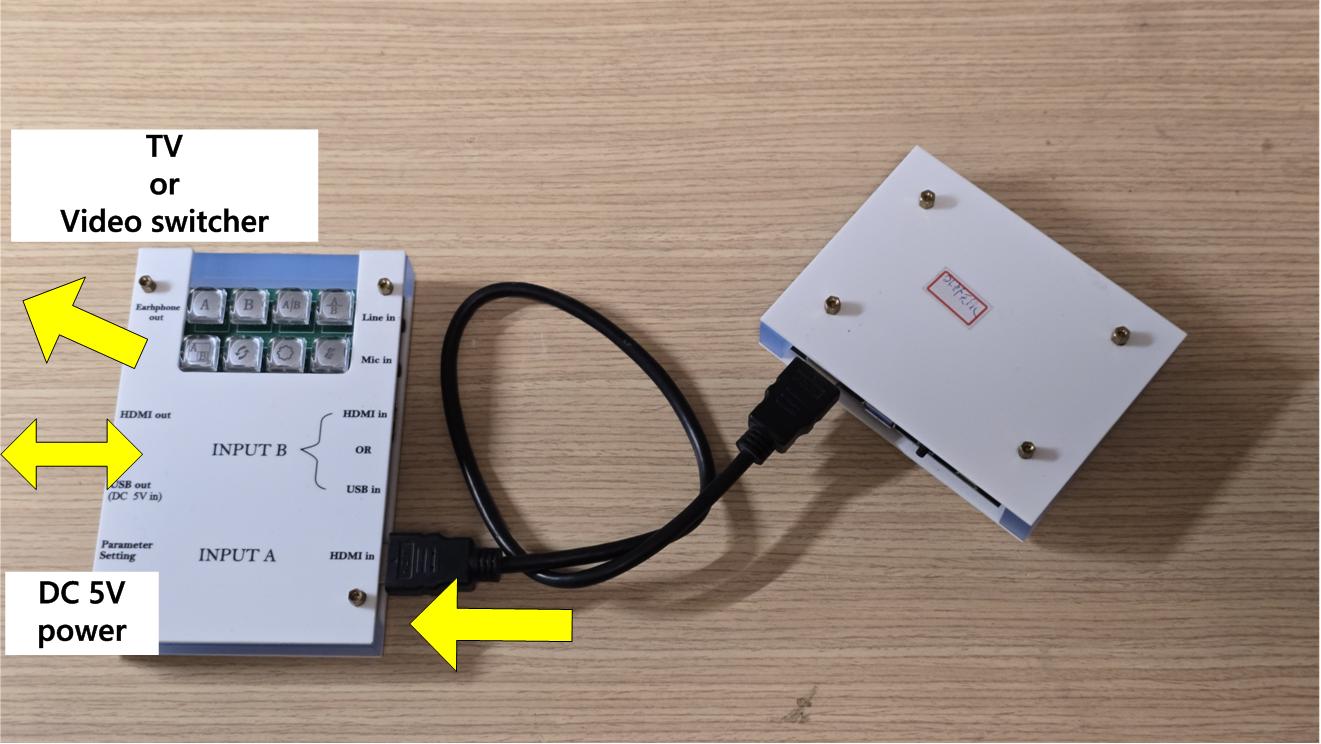

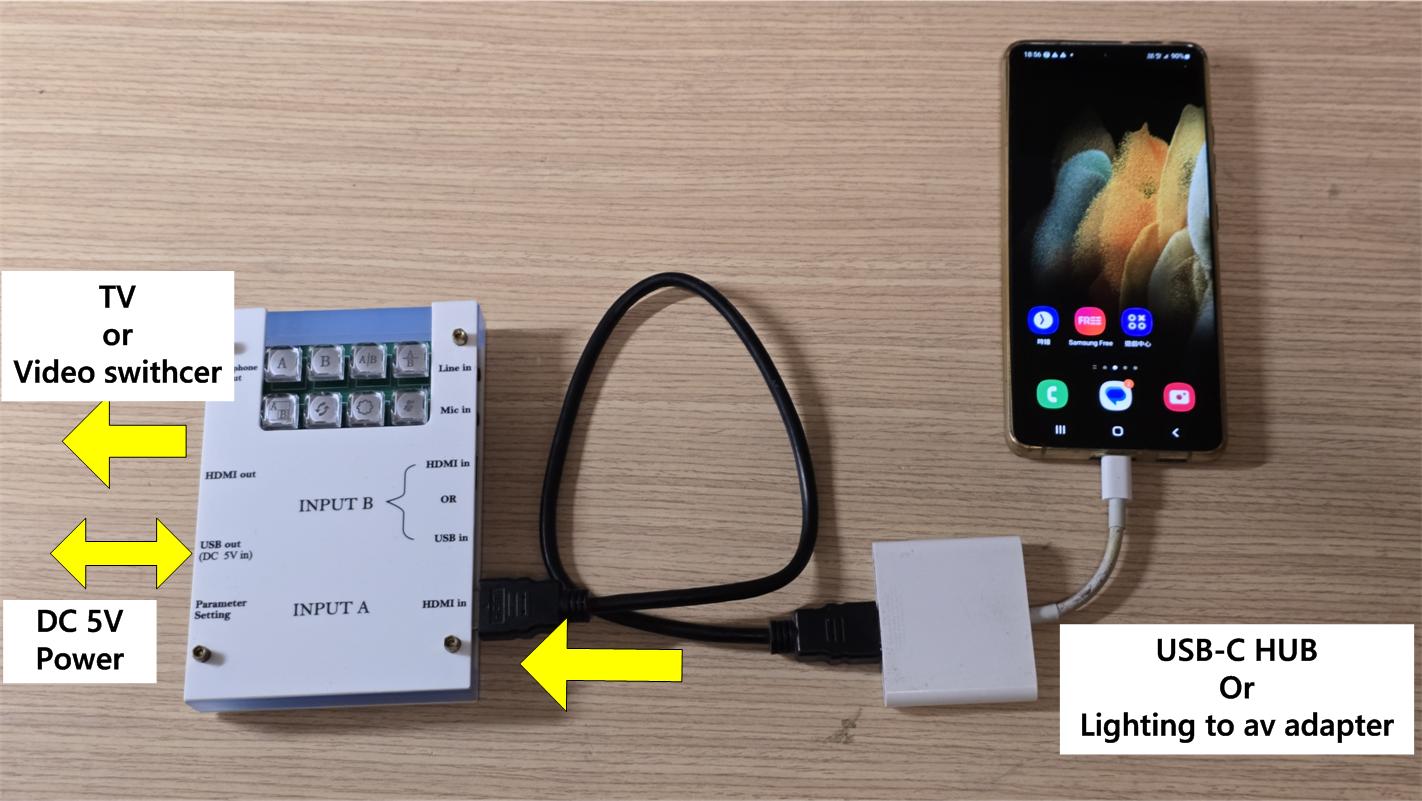

How to setup ?

1. First, connect the phone's HDMI output to the TV and ensure that the TV display the video

2. connect a DC 5V power supply to the UVC-HDMI dual-mode converter

   (smartphone mirrorig version).

3. HDMI input source: USB-C hub / Lightning to AV adapter or  smartphone vertical mode mirrora dapter.

4. parameter setting from PC

 turn on broswer  172.20.13.168

5. Follow the parameter setting from this PDF FILE

    dowload link
